Cylinder Head Assembly Component Location Index

Cylinder Head Assembly Component Location Index



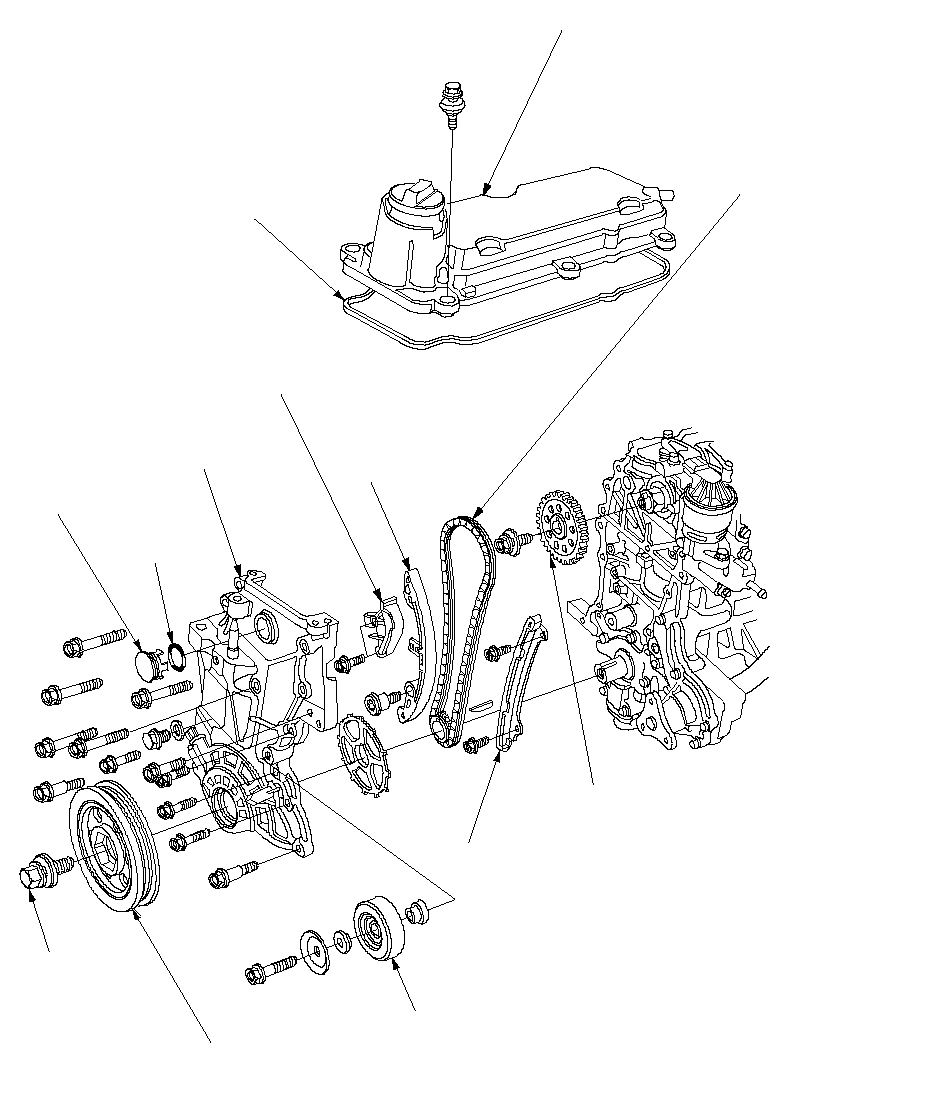

SAA4EF0A14600000000DAAD01CYLINDER HEAD COVER
Except L15A1 engine:
Removal,
Installation,
in the Shop Manual, P/N 62SAA00CAM CHAIN
GUIDECRANKSHAFT PULLEY
Replacement,
in the Shop Manual, P/N 62SAA00CRANKSHAFT
PULLEY BOLT
Replacement,

in the Shop Manual,
P/N 62SAA00CHAIN CASEO-RINGIDLER PULLER
(With A/C COMPRESSOR)CAM CHAIN
TENSIONER SLIDERCAM CHAIN
TENSIONERHEAD COVER
GASKETCYLINDER HEAD PLUGL15A1 engine:
Removal,
Installation,
in the Shop Manual Supplement, P/N 62SAA21CAM CHAIN
Except L15A1, L15A2
and L15A4 engines:
Removal,
in the Shop Manual,
P/N 62SAA00L15A1, L15A2
and L15A4 engines:
Removal,
in the Shop Manual
Supplement, P/N 62SAA21Except L15A1, L15A2
and L15A4 engines:
Installation,
in the Shop Manual,
P/N 62SAA00L15A1, L15A2
and L15A4 engines:
Installation,
in the Shop Manual
Supplement, P/N 62SAA21CAMSHAFT SPROCKET
Except L15A1, L15A2 and L15A4 engines:
Removal,
in the Shop Manual, P/N 62SAA00L15A1, L15A2 and L15A4 engines:
Removal,
in the Shop Manual Supplement, P/N 62SAA21Except L15A1, L15A2 and L15A4 engines:
Installation,
in the Shop Manual, P/N 62SAA00L15A1, L15A2 and L15A4 engines:
Installation,
in the Shop Manual Supplement, P/N 62SAA21



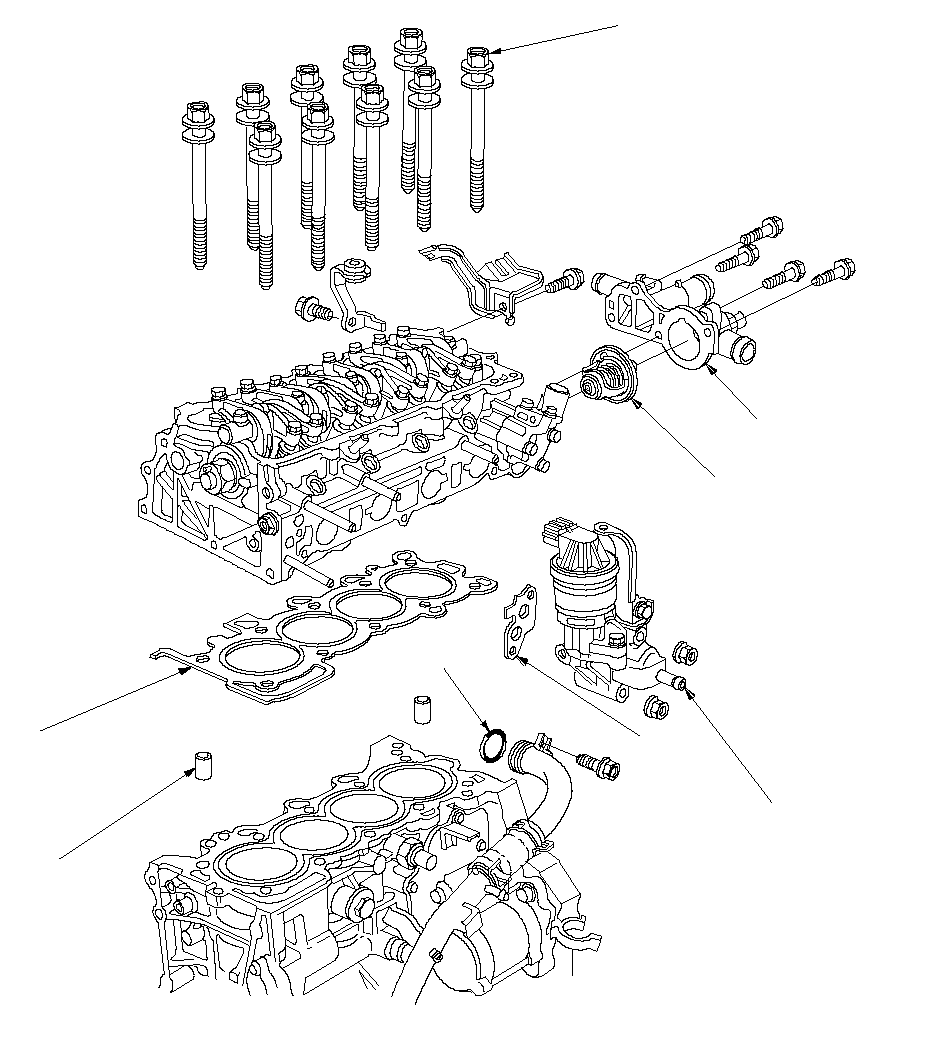

SAA4EF0A14600000000DAAD02THERMOSTAT
Replacement,
in the Shop Manual, P/N 62SAA00
Inspection,
in the Shop Manual, P/N 62SAA00EXHAUST GAS RECIRCULATION
(EGR)/PASSAGE ASSEMBLY
Installation,
in the Shop Manual, P/N 62SAA00O-RINGDOWEL PINCYLINDER HEAD BOLT
Inspection,
in the Shop Manual, P/N 62SAA00THERMOSTAT HOUSINGGASKETCYLINDER HEAD
GASKET



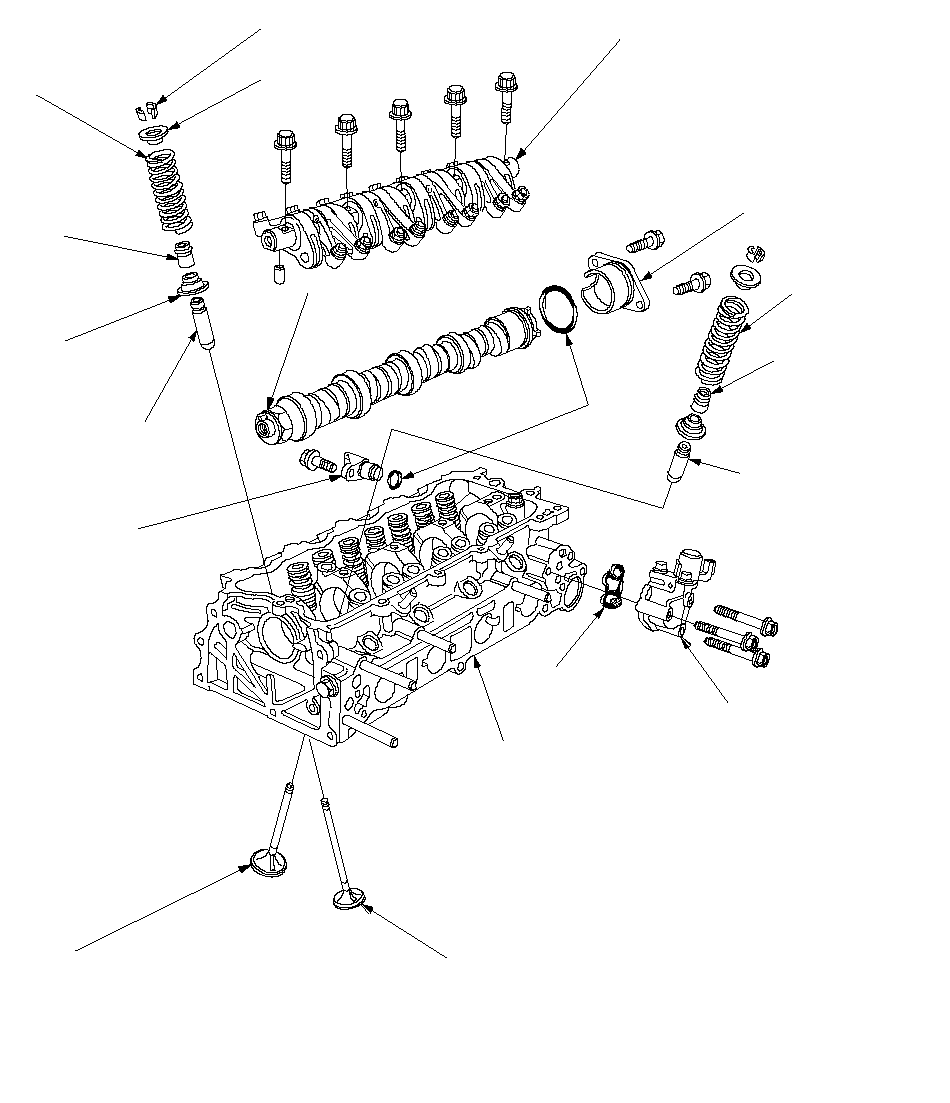

SAA4EF0A14600000000DAAD03CYLINDER HEAD
Except L15A1 engine:
Removal,
Inspection,
Installation,
in the Shop Manual, P/N 62SAA00EXHAUST VALVE
Except L15A1 engine:
Removal,
Installation,
in the Shop Manual, P/N 62SAA00EXHAUST
VALVE SEALSPRING RETAINERVALVE KEEPERSVALVE SPRING
SEATEXHAUST VALVE
GUIDECAMSHAFT POSITION (CMP)
(TOP DEAD CENTER(TDC) )
SENSORCAMSHAFT
THRUST COVERINTAKE VALVE
SPRINGEXHAUST VALVE
SPRINGINTAKE VALVE SEAL
Replacement,

in the Shop Manual,
P/N 62SAA20ROCKER ARM ASSEMBLY
Except L15A1 engine:
Overhaul,
Inspection,
in the Shop Manual, P/N 62SAA00O-RINGCAMSHAFT
Inspection,
VTEC SOLENOID
VALVE FILTERVTEC SOLENOID VALVE ASSEMBLY
L15A1 engine:
Replacement,
in the Shop Manual
Supplement, P/N 62SAA21L15A1 engine:
Overhaul,
Inspection,
in the Shop Manual
Supplement, P/N 62SAA21INTAKE VALVE GUIDE
Except L15A1 engine:
Replacement,
in the Shop Manual,
P/N 62SAA00L15A1 engine:
Replacement,
in the Shop Manual
Supplement, P/N 62SAA21L15A1 engine:
Removal,
in the Shop Manual Supplement, P/N 62SAA21
Inspection,
in the Shop Manual, P/N 62SAA20
Installation,
in the Shop Manual Supplement, P/N 62SAA21L15A1 engine:
Removal,
Installation,
in the Shop Manual Supplement, P/N 62SAA21INTAKE VALVE
Except L15A1 engine:
Removal,
Installation,
in the Shop Manual, P/N 62SAA00L15A1 engine:
Removal,
Installation,
in the Shop Manual Supplement, P/N 62SAA21
