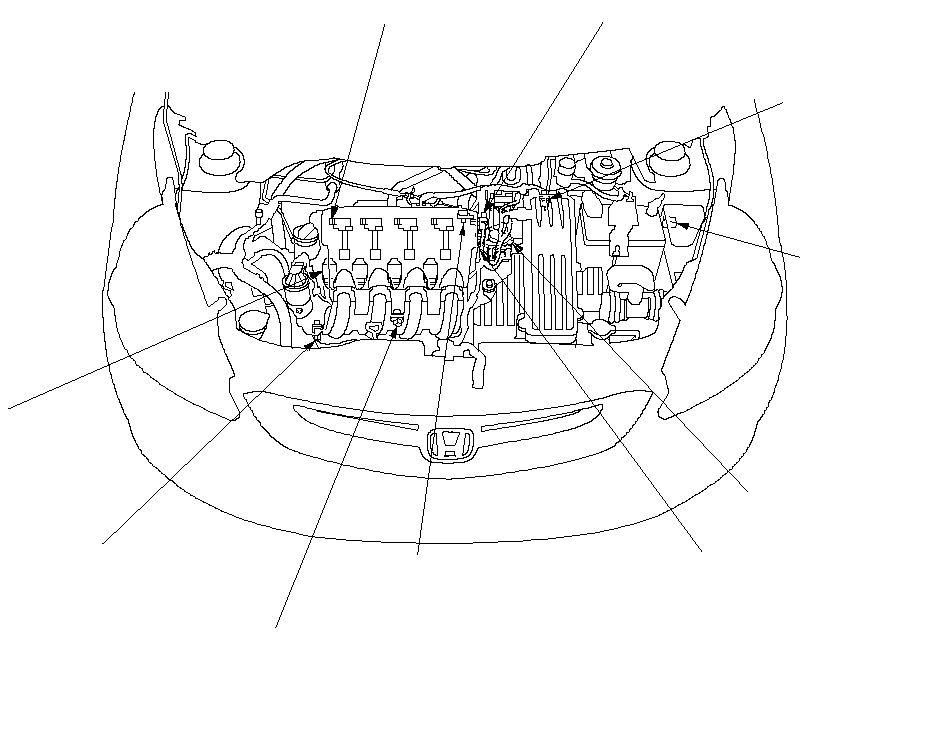

PGM-FI System Component Location Index (L12A/L13A without ETCS)

PGM-FI System Component Location Index

INTAKE AIR
TEMPERATURE
(IAT)SENSOR
Replacement,

in the '02 Jazz/Fit
Shop ManualENGINE COOLANT
TEMPERATURE
(ECT) SENSOR
Replacement,
in the '02 Jazz/Fit Shop ManualKNOCK SENSOR
Replacement,
in the '02 Jazz/Fit Shop ManualMANIFOLD ABSOLUTE
PRESSURE (MAP) SENSOR
Replacement,
in the '02 Jazz/Fit Shop ManualTHROTTLE POSITION (TP)
SENSORCRANKSHAFT POSITION (CKP)
SENSOR
Replacement,
in the '02 Jazz/Fit Shop ManualREAR
IGNITION
COILFRONT
IGNITION
COILELECTRICAL
LOAD DETECTOR
(ELD)CAMSHAFT POSITION (CMP) SENSOR
(TOP DEAD CENTER (TDC) SENSOR)
Replacement,
in the '02 Jazz/Fit Shop Manual*: The illustration shows LHD model.

SECONDARY HEATED OXYGEN
SENSOR (SECONDARY HO2S)
(SENSOR 2)
Replacement,
in the '02 Jazz/Fit Shop ManualPRIMARY HEATED OXYGEN
SENSOR (PRIMARY HO2S)
(SENSOR 1)
Replacement,
in the '02 Jazz/Fit Shop Manual

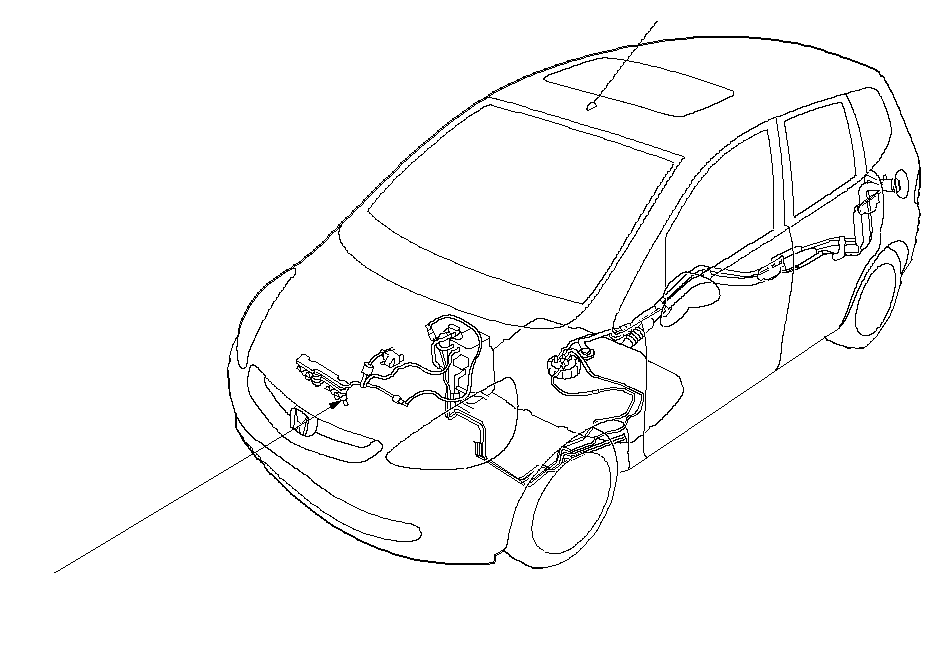

LHD:

ENGINE CONTROL MODULE (ECM)/
POWERTRAIN CONTROL MODULE
(PCM)
General Troubleshooting Information,
DATA LINK CONNECTOR (DLC)
General Troubleshooting Information,

Troubleshooting, INERTIA SWITCH

RHD:

INJECTORS
Test,
in the '02 Jazz/Fit Shop Manual
Replacement,
in the '02 Jazz/Fit Shop Manual
