Under Body Measuring Dimensions4-6

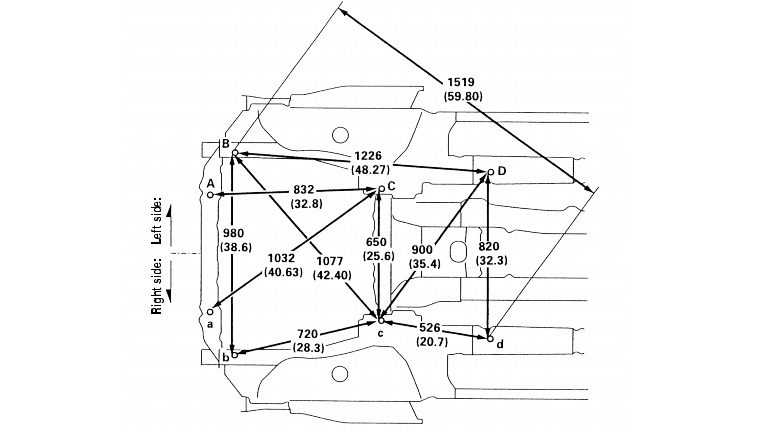

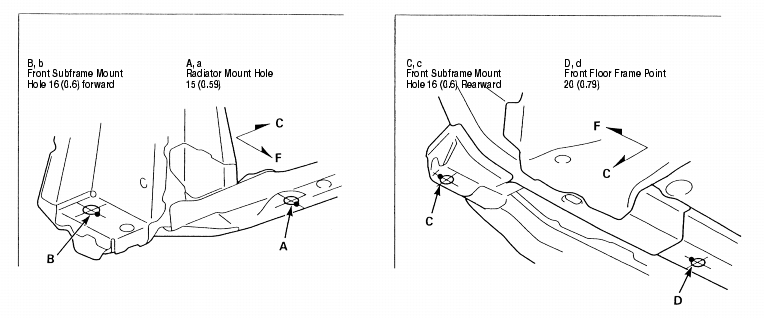

Engine Compartment and Front Floor Under View

Unit: mm (in.)

4-7

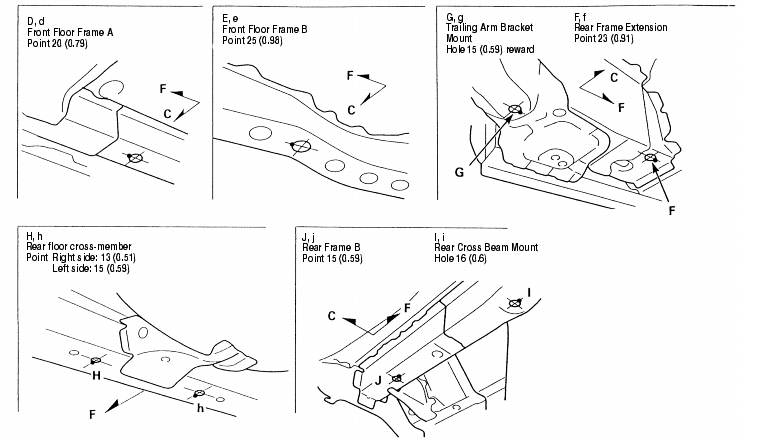

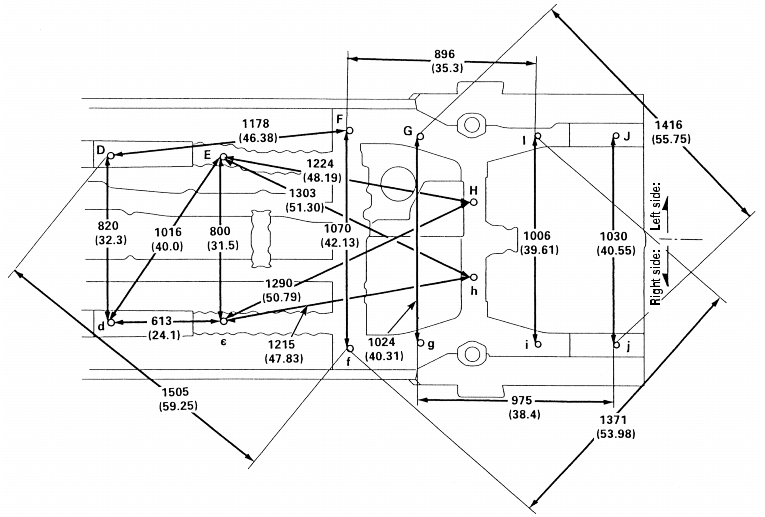

Middle and Rear Floor Under View

Unit: mm (in.)
