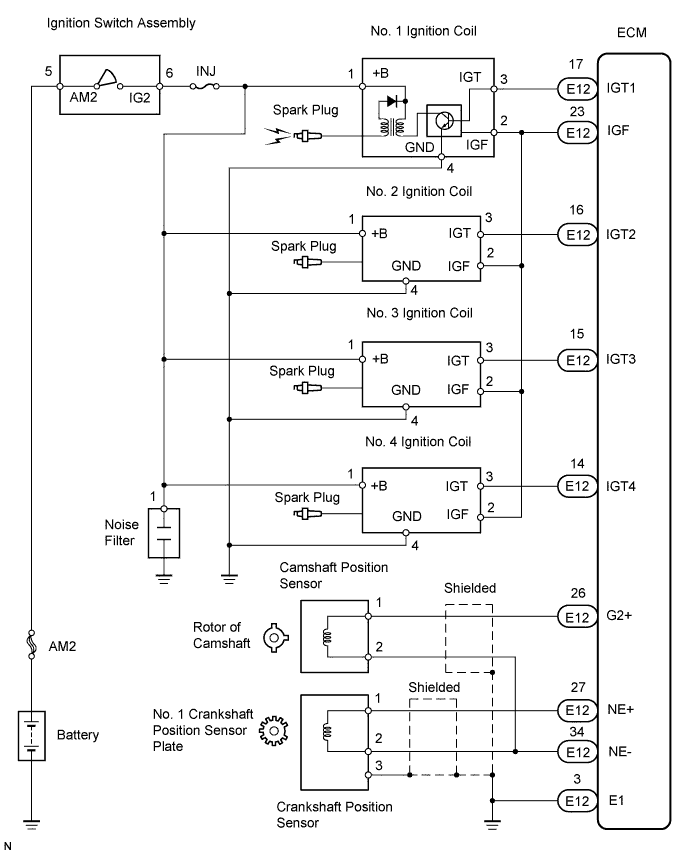

IGNITION SYSTEM > SYSTEM DIAGRAM

for Preparation Click here


Ignition timing is controlled by the ECM based on signals from various sensors.

A111710E01
