Code No.U1500: Column ECU LIN timeout
| note |
When the diagnosis codes relating to the LIN communication error are output, make sure of the vehicle equipment. When the vehicle is not equipped with the system the ETACS-ECU communicates to, the diagnosis code is always output. This is not abnormal.
|
TROUBLE JUDGMENT
The ETACS-ECU receives signal from the column switch. If signal cannot be received at all, diagnosis code No.U1500 will be set.
COMMENT ON TROUBLE SYMPTOM
The M.U.T.-III shows a diagnosis code status as active.
- Connector(s) or wiring harness in the LIN bus lines between the column switch and the ETACS-ECU, the power supply system of the column switch, or the column switch itself may be defective.
The M.U.T.-III shows a diagnosis code status as stored.
- If diagnosis code No.U1500 is stored as a past trouble, carry out diagnosis with particular emphasis on wiring and connector(s) in the LIN bus line between the column switch and the ETACS-ECU, and the power supply system of the column switch. For diagnosis procedures, refer to GROUP 00, How to Use Troubleshooting/Inspection Service Points - How to Treat Past Trouble
.
PROBABLE CAUSES
- Malfunction of the lighting switch <LHD>
- Malfunction of the wiper/washer switch <RHD>
- Damaged harness wires and connectors
|
|

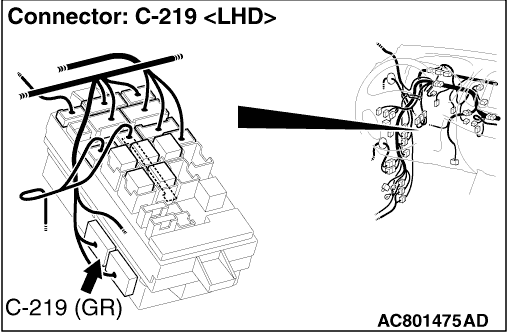

STEP 1. Connector check: C-219 ETACS-ECU connector, C-302 column switch connector
|
|
|
Q.
Is the check result normal?
|
|
|
 Go to Step 2.
|
|
|
|
|
|
 Repair the defective connector. Go to Step 3.
|
|
|
|
|
|
STEP 2. Check the wiring harness between C-219 ETACS-ECU connector terminal No.54 and C-302 column switch connector terminal No.3.
|
|
|
- Check the communication line for open circuit.
|
|
|
Q.
Is the check result normal?
|
|
|
Go to Step 3.
|
|
|
|
|
|
Repair the wiring harness. Go to Step 3.
|
|
|
|
|
|
STEP 3. Check whether the diagnosis code is reset.
|
|
|
Check again if the diagnosis code is set to the ETACS-ECU.
|
|
|
(1)Erase the diagnosis code.
|
|
|
(2)Turn the ignition switch from "LOCK" (OFF) position to "ON" position.
|
|
|
(3)Check if diagnosis code is set.
|
|
|
Q.
Is the diagnosis code set?
|
|
|
Replace the lighting switch <LHD> or wiper/washer switch <RHD>.
|
|
|
|
|
|
A poor connection, open circuit or other intermittent malfunction is present in the LIN bus lines between the column switch and the ETACS-ECU (Refer to GROUP 00, How to Use Troubleshooting/Inspection Service Points - How to Cope with Intermittent Malfunctions ).
|
|
|
|
)
)
)
)
)
