No.
|
Power source circuit
|
Name
|
Rated capacity (A)
|
Housing colour
|
Load circuit
|
1
|

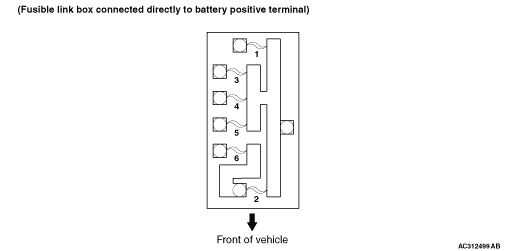

Battery/Fusible link No.2 (in fusible link box)
|
Fusible link
|
120
|
-
|
ETACS-ECU, headlamp relay, fusible link Nos.1, 2, 3 and 4 (in junction block) circuit, fuse Nos.10, 14, 15, 16, 17, 18, 19, 20, 31, 35, 36, 42 and 43 circuit
|
2
|
Battery/Alternator
|
|
120
|
-
|
Fusible link Nos.6 (in fusible link box) circuit/battery, fusible link Nos.1, 3, 4 and 5 (in fusible link box) circuit
|
3
|
Battery/Fusible link No.2 (in fusible link box)
|
|
40
|
-
|
ABS-ECU and TCL/ASC-ECU
|
4
|
|
|
60
|
-
|
Electric power steering-ECU
|
5
|
|
|
30
|
-
|
ABS-ECU, alternator and TCL/ASC-ECU
|
6
|
Fusible link No.2 (in fusible link box) /Alternator
|
|
80
|
-
|
Fuse Nos.5, 6, 8, 24, 33 and 34 circuit
|
No.
|
Power source circuit
|
Name
|
Rated capacity (A)
|
Housing colour
|
Load circuit
|
1
|

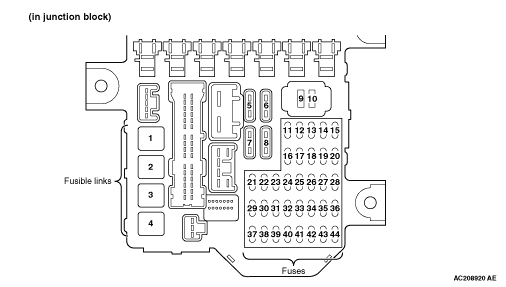

Fusible link No.1 (in fusible link box)
|
Fusible link
|
40
|
Green
|
Ignition switch circuit
|
2
|
|
|
40
|
Green
|
Power window main switch and power window motor
|
3
|
|
|
40
|
Green
|
Cooling fan motor
|
4
|
|
|
40
|
Green
|
Automated manual transmission control relay, engine-A-M/T-ECU and allshift lever
|
5
|
Fusible link No.6 (in fusible link box)
|
Fuse
|
30
|
Green
|
Fuse No.11 circuit and rear window defogger
|
6
|
|
|
30
|
Green
|
Seat heater and seat heater switch
|
7
|
-
|
|
-
|
-
|
-
|
8
|
Fusible link No.6 (in fusible link box)
|
|
40
|
Orange
|
Blower motor, blower resistor and ETACS-ECU
|
9
|
Ignition switch (ACC)
|
|
10
|
Red
|
ETACS-ECU, capacitor unit and radio with CD player
|
10
|
Fusible link No.1 (in fusible link box)
|
|
10
|
Red
|
Column switch, combination meter, ETACS-ECU, luggage compartment lamp, radio with CD player, rain light sensor and room lamp
|
11
|
Rear window defogger relay
|
|
7.5
|
Brown
|
Door mirror heater
|
12
|
Ignition switch (IG2)
|
|
7.5
|
Brown
|
-
|
13
|
Ignition switch (ACC)
|
|
20
|
Yellow
|
ETACS-ECU and windshield wiper motor
|
14
|
ETACS-ECU (tail lamp relay)
|
|
7.5
|
Brown
|
A/C-ECU, AS&G OFF switch, clock spring, fog lamp switch, hazard warning lamp switch, heater control-ECU, position lamp (RH), seat heater switch and tail lamp (RH)
|
15
|
|
|
7.5
|
Brown
|
Licence plate lamp, position lamp (LH) and tail lamp (LH)
|
16
|
Fusible link No.1 (in fusible link box)
|
|
20
|
Yellow
|
Airflow sensor, camshaft position sensor, crank angle sensor, engine control relay, engine-ECU, engine-A-M/T-ECU, fuel pressure solenoid valve, injector, oil control valve, oxygen sensor, purge control solenoid valve, throttle valve control servo relay and wastegate solenoid valve
|
17
|
|
|
15
|
Blue
|
Fuel pump and gauge unit
|
18
|
|
|
10
|
Red
|
Horn and horn relay
|
19
|
Headlamp relay: HI
|
|
10
|
Red
|
Headlamp (LH)
|
20
|
|
|
10
|
Red
|
Headlamp (RH)
|
21
|
-
|
|
-
|
-
|
-
|
22
|
-
|
|
-
|
-
|
-
|
23
|
Ignition switch (ACC)
|
|
7.5
|
Brown
|
Remote controlled mirror
|
24
|
Fusible link No.6 (in fusible link box)
|
|
7.5
|
Brown
|
Rear fog lamp and rear fog lamp relay
|
25
|
Ignition switch (ACC)
|
|
15
|
Blue
|
Accessory socket
|
26
|
|
|
15
|
Blue
|
ETACS-ECU and rear wiper motor
|
27
|
Fusible link No.6 (in fusible link box)
|
|
-
|
-
|
-
|
28
|
|
|
-
|
-
|
-
|
29
|
|
|
-
|
-
|
-
|
30
|
|
|
-
|
-
|
-
|
31
|
Fusible link No.1 (in fusible link box)
|
|
10
|
Red
|
ETACS-ECU
|
32
|
Ignition switch (ACC)
|
|
-
|
-
|
-
|
33
|
Fusible link No.6 (in fusible link box)
|
|
15
|
Blue
|
Diagnosis connector and ETACS-ECU
|
34
|
|
|
15
|
Blue
|
Front fog lamp and front fog lamp relay
|
35
|
Headlamp relay: LO
|
|
10
|
Red
|
Column switch, front combination lamp (levelling) and headlamp (LH)
|
36
|
|
|
10
|
Red
|
Headlamp (RH)
|
37
|
Ignition switch (IG1)
|
|
7.5
|
Brown
|
Allshift lever, back-up lamp and SRS-ECU
|
38
|
|
|
7.5
|
Brown
|
Engine-ECU, engine-A-M/T-ECU and fuel pump relay
|
39
|
|
|
10
|
Red
|
Ignition coil
|
40
|
|
|
7.5
|
Brown
|
ABS-ECU, column switch, combination meter, electric power steering-ECU, ETACS-ECU, G and yaw rate sensor, SRS-ECU, steering wheel sensor and TCL/ASC-ECU
|
41
|
Ignition switch (IG2)
|
|
7.5
|
Brown
|
A/C-ECU, A/C compressor relay, blower relay, cooling fan control relay, heater control-ECU, inside/outside air selection damper control motor, rear window defogger relay and seat heater relay
|
42
|
Fusible link No.1 (in fusible link box)
|
|
15
|
Blue
|
ABS-ECU, high-mounted stop lamp and stop lamp and TCL/ASC-ECU
|
43
|
|
|
7.5
|
Brown
|
A/C compressor assembly
|
44
|
|
|
-
|
-
|
-
|
)
)
