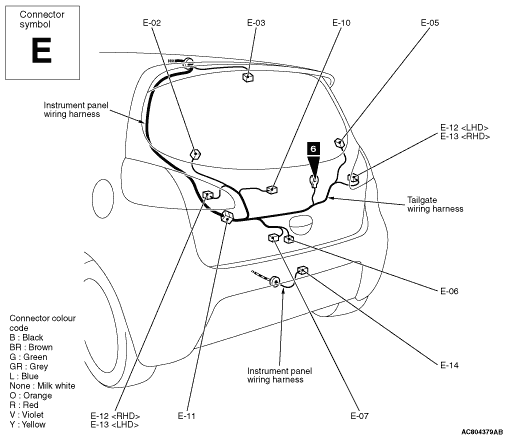

| E-02 |
(1-B) |
Rear window defogger (+) |
| E-03 |
(2) |
High-mounted stop lamp |
| E-05 |
(1-B) |
Rear window defogger (-) |
| E-06 |
(2) |
Tailgate switch |
| E-07 |
(2) |
Tailgate lock actuator |
| E-10 |
(3) |
Rear wiper motor |
| E-11 |
(10) |
Instrument panel wiring harness and tailgate wiring harness combination |
| E-12 |
(2) |
Back-up lamp |
| E-13 |
(2) |
Rear fog lamp |
| E-14 |
(2-GR) |
Licence plate lamp |
