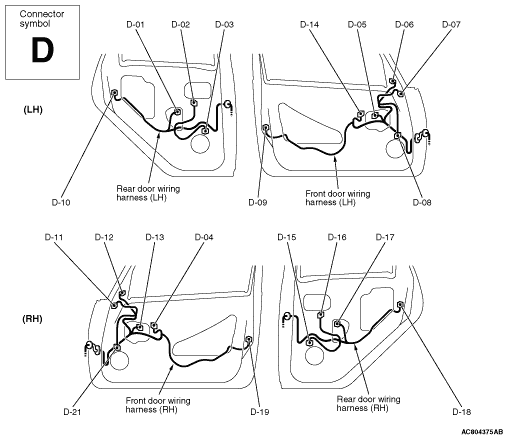

D-01
|
(2-B)
|
Power window motor (rear: LH)
|
D-02
|
(8)
|
Power window sub switch (rear: LH)
|
D-03
|
(2)
|
Rear door speaker (LH)
|
D-04
|
(14)
|
Power window main switch
|
D-05
|
(2-B)
|
Power window motor (front: LH)
|
D-06
|
(5-GR)
|
Remote controlled mirror (LH)
|
D-07
|
(2)
|
Tweeter (LH)
|
D-08
|
(2)
|
Front door speaker (LH)
|
D-09
|
(6-B)
|
Front door lock actuator (LH)
|
D-10
|
(6-B)
|
Rear door lock actuator (LH)
|
D-11
|
(2)
|
Tweeter (RH)
|
D-12
|
(5-GR)
|
Remote controlled mirror (RH)
|
D-13
|
(2-B)
|
Power window motor (front: RH)
|
D-14
|
(8)
|
Power window sub switch (front)
|
D-15
|
(2)
|
Rear door speaker (RH)
|
D-16
|
(8)
|
Power window sub switch (rear: RH)
|
D-17
|
(2-B)
|
Power window motor (rear: RH)
|
D-18
|
(6-B)
|
Rear door lock actuator (RH)
|
D-19
|
(6-B)
|
Front door lock actuator (RH)
|
D-21
|
(2)
|
Front door speaker (RH)
|
)
