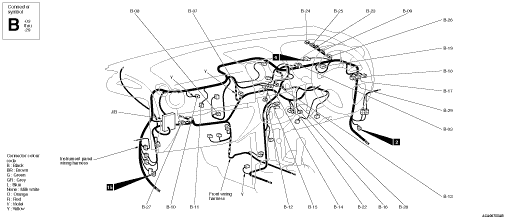

INSTRUMENT PANEL <RH drive vehicles>



B-03
 (22)
 J/C (CAN 1)
B-07
 (6)
 Passenger’s air bag cut off switch
B-08
 (2-B)
 Air thermo sensor
B-09
 (1)
 Antenna amplifier
B-10
 (2-R)
 Passenger’s (front) air bag module (squib)
B-11
 (5)
 Inside/outside air selection damper control motor
B-12
 (5)
 Air mixing damper control motor and potentiometer
B-13
 (14)
 Radio with CD player
B-14
 (14)
 Radio with CD player
B-15
 (1-B)
 Radio with CD player
B-16
 (16-B)
 Diagnosis connector
B-17
 (10)
 Remote controlled mirror switch
B-18
 (6)
 Fog lamp switch
B-19
 (22)
 Combination meter
B-22
 (6-L)
 Clutch monitoring switch <with cruise control system (M/T) without AS&G> or clutch switch (A) <with AS&G>
B-23
 (22)
 J/C (1)
B-24
 (22)
 J/C (2)
B-25
 (12)
 J/C (4)
B-26
 (12-G)
 J/C (3)
B-27
 (2-GR)
 Diode (for A/C)
B-28
 (6-GR)
 Crutch switch (B) <with AS&G>
B-29
 (6-GR)
 AS&G OFF switch

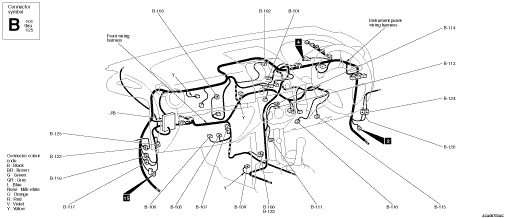

INSTRUMENT PANEL <RH drive vehicles> (CONTINUED)



B-101
 (2)
 Blower motor
B-102
 (4)
 Hazard warning lamp switch
B-103
 (4-B)
 Blower resistor
B-105
 (2-B)
 Electric power steering-ECU
B-106
 (8-B)
 Electric power steering-ECU
B-107
 (22)
 J/C (CAN 2)
B-108
 (4)
 Oxygen sensor (front) <3A9, 4A9>
B-109
 (44)
 SRS-ECU
B-111
 (3-B)
 Accessory socket
B-113
 (18-B)
 Heater control-ECU <without A/C> or A/C-ECU <with A/C>
B-114
 (5-B)
 Blower switch
B-115
 (6-B)
 Accelerator pedal position sensor
B-116
 (6)
 Stop lamp switch
B-117
 (10)
 Front wiring harness and instrument panel wiring harness combination
B-118
 (22)
 Front wiring harness and instrument panel wiring harness combination
B-120
 (16)
 Instrument panel wiring harness and front door wiring harness (RH) combination
B-122
 (13)
 Instrument panel wiring harness and front door wiring harness (LH) combination
B-123
 (4)
 Oxygen sensor (rear) <4G1>
B-124
 (4)
 Instrument panel wiring harness and front door wiring harness (driver’s side) combination <with rear power window>
B-125
 (2)
 Starter signal fuse <with AS&G>

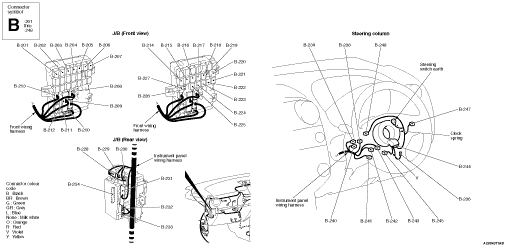

INSTRUMENT PANEL <RH drive vehicles> (CONTINUED)



B-201
 (4)
 Power window relay
B-202
 (4)
 Horn relay
B-203
 (4)
 Fuel pump relay 2
B-204
 (4)
 Rear fog lamp relay
B-205
 (4)
 Starter relay <without AS&G> or starter cut relay <with AS&G>
B-206
 (4)
 Engine control relay
B-207
 (4)
 A/C compressor relay
B-208
 (2)
 Front wiring harness and J/B combination
B-209
 (6)
 Front wiring harness and J/B combination
B-210
 (14)
 Front wiring harness and J/B combination
B-211
 (3)
 No connection
B-212
 (32)
 Front wiring harness and J/B combination
B-213
 (5)
 Front wiring harness and J/B combination
B-214
 (4)
 Cooling fan control relay (LO)
B-215
 (4)
 Front fog lamp relay
B-216
 (4)
 Blower relay
B-217
 (4)
 Fuel pump relay 1
B-218
 (4)
 Automated manual transmission control relay
B-219
 (4)
 No connection
B-220
 (4)
 Starter control relay <with AS&G>
B-221
 (4)
 Throttle valve control servo relay
B-222
 (4)
 Headlamp relay (HI)
B-223
 (4)
 Headlamp relay (LO)
B-224
 (4)
 Seat heater relay
B-225
 (4)
 Rear window defogger relay
B-226
 (4)
 No connection
B-227
 (4)
 Cooling fan control relay (HI)
B-228
 (15)
 Instrument panel wiring harness and J/B combination
B-229
 (6)
 Instrument panel wiring harness and J/B combination
B-230
 (8)
 Instrument panel wiring harness and J/B combination
B-231
 (36)
 Instrument panel wiring harness and J/B combination
B-232
 (24)
 ETACS-ECU
B-233
 (24-GR)
 ETACS-ECU
B-234
 (20)
 ETACS-ECU
B-236
 (1-B)
 Horn switch
B-238
 (10)
 Column switch
B-239
 (9)
 Key reminder switch
B-240
 (6)
 Ignition switch
B-241
 (6)
 Steering wheel sensor <with ASC>
B-242
 (6)
 Clock spring
B-243
 (4-Y)
 Clock spring
B-244
 (5-B)
 Clock spring and clock spring sub wiring harness combination
B-245
 (2-Y)
 Driver’s air bag module (squib)
B-247
 (4-L)
 Cruise control switch
B-248
 (5-R)
 Steering wheel audio remote control switch
