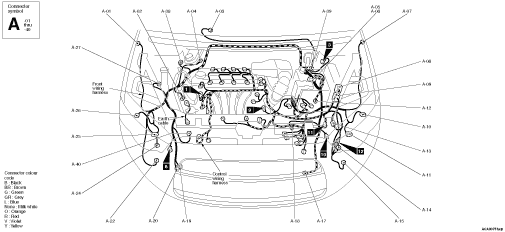

A-01
|
(2-GR)
|
Side turn-signal lamp (RH)
|
A-02
|
(2-B)
|
Front wheel speed sensor (RH)
|
A-03
|
(5-GR)
|
Windshield wiper motor
|
A-04
|
(2-B)
|
Brake fluid level switch
|
A-05
|
(26-B)
|
ABS-ECU <without ASC>
|
A-06
|
(46-B)
|
TCL/ASC-ECU
|
A-07
|
(2-GR)
|
Side turn-signal lamp (LH)
|
A-08
|
(66-GR)
|
Engine-ECU <M/T> or engine-A-M/T-ECU <Automated
manual transmission>
|
A-09
|
(66-GR)
|
Engine-ECU <M/T> or engine-A-M/T-ECU <Automated
manual transmission>
|
A-10
|
(2-B)
|
Front combination lamp (LH)
|
A-11
|
(6-B)
|
Front combination lamp (LH)
|
A-12
|
(2-B)
|
Front wheel speed sensor (LH)
|
A-13
|
(8-GR)
|
Front wiring harness and control wiring harness combination
|
A-14
|
(6-GR)
|
Earth J/C
|
A-15
|
(2-B)
|
Front fog lamp (LH)
|
A-17
|
(2-B)
|
Ambient temperature sensor
|
A-18
|
(4-GR)
|
Cooling fan motor
|
A-19
|
(1-B)
|
Horn
|
A-20
|
(1-B)
|
Horn
|
A-22
|
(2-B)
|
Front fog lamp (RH)
|
A-24
|
(2-B)
|
Washer motor
|
A-25
|
(6-B)
|
Front combination lamp (RH)
|
A-26
|
(2-B)
|
Front combination lamp (RH)
|
A-27
|
(3-B)
|
A/C pressure sensor
|
A-38
|
(3-B)
|
Brake vacuum sensor <with AS&G>
|
A-39
|
(4-GR)
|
Battery current sensor <with AS&G>
|
A-40
|
(2-B)
|
Hood buzzer switch <with AS&G>
|

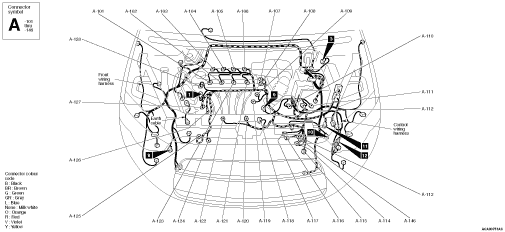

A-101
|
(2-GR)
|
Injector 1
|
A-102
|
(2-GR)
|
Injector 2
|
A-103
|
(3-GR)
|
Ignition coil 1
|
A-104
|
(3-GR)
|
Ignition coil 2
|
A-105
|
(3-GR)
|
Ignition coil 3
|
A-106
|
(3-GR)
|
Ignition coil 4
|
A-107
|
(2-B)
|
Purge control solenoid valve
|
A-108
|
(2-B)
|
Engine coolant temperature sensor
|
A-109
|
(3-B)
|
Camshaft position sensor
|
A-110
|
(6-B)
|
Shift actuator 1 <Automated manual transmission>
|
A-111
|
(4-B)
|
Drum position sensor <Automated manual transmission>
|
A-112
|
(6-GR)
|
Shift actuator 2 <Automated manual transmission>
|
A-113
|
(2-B)
|
Back-up lamp switch <M/T>
|
A-114
|
(2-B)
|
Input speed sensor <Automated manual transmission>
|
A-115
|
(6-B)
|
Clutch actuator <Automated manual transmission>
|
A-116
|
(1-B)
|
Starter
|
A-117
|
(1)
|
Starter
|
A-118
|
(6-B)
|
Electronic control throttle body assembly
|
A-119
|
(4-B)
|
Manifold absolute pressure sensor
|
A-120
|
(1-L)
|
Engine oil pressure switch
|
A-121
|
(2-GR)
|
Injector 4
|
A-122
|
(2-B)
|
Detonation sensor
|
A-123
|
(2-GR)
|
Injector 3
|
A-124
|
(1-B)
|
A/C compressor assembly
|
A-125
|
(3-B)
|
Crank angle sensor
|
A-126
|
(1)
|
Alternator
|
A-127
|
(4-GR)
|
Alternator
|
A-128
|
(2-B)
|
Oil control valve
|
A-146
|
(4-B)
|
Neutral position sensor <with AS&G>
|
)
)
