Name
|
Symbol
|
Name
|
Symbol
|

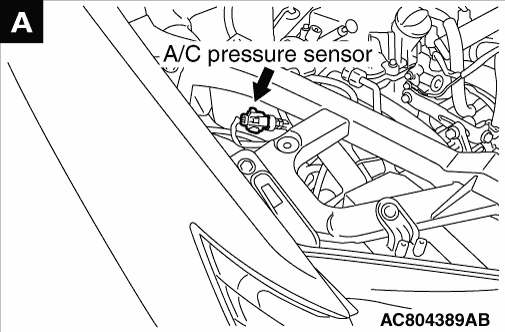

A/C pressure sensor
|
A
|

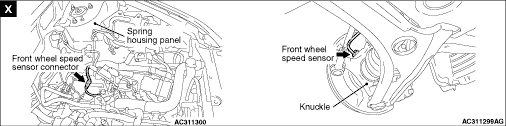

Front wheel speed sensor
|
X
|

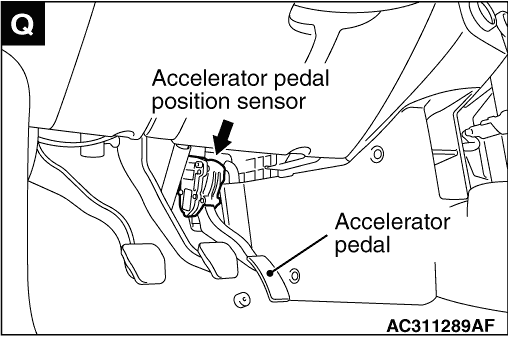

Accelerator pedal position sensor
|
Q
|

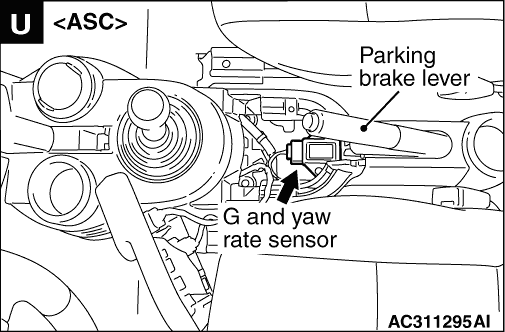

G and yaw rate sensor <ASC>
|
U
|

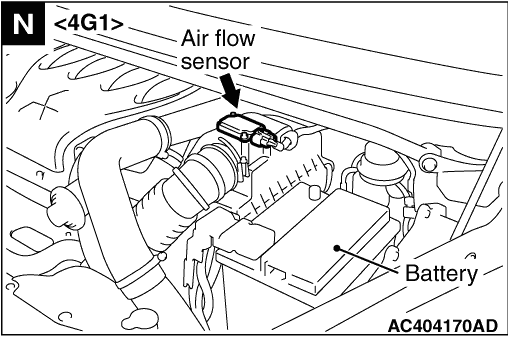

Air flow sensor <4G1>
|
N
|

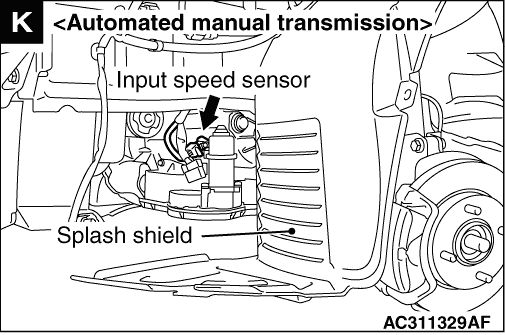

Input speed sensor <Automated manual transmission>
|
K
|

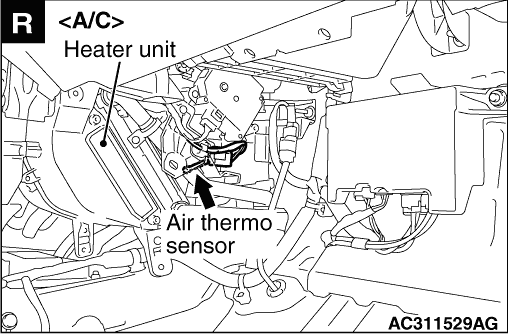

Air thermo sensor <A/C>
|
R
|

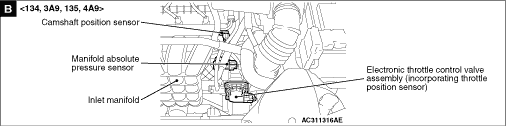

Manifold absolute pressure sensor <134, 3A9, 135, 4A9>
|
B
|

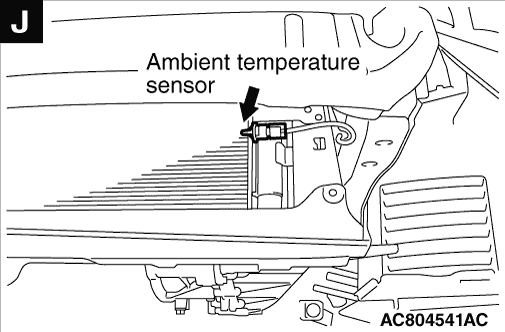

Ambient temperature sensor
|
J
|

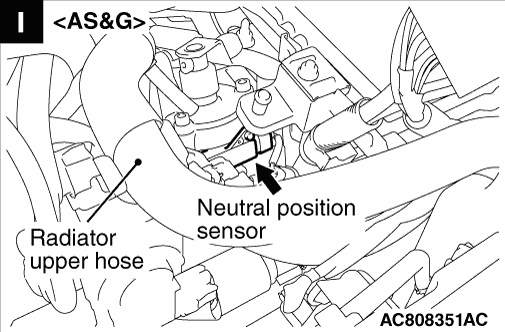

Neutral position sensor <AS&G>
|
I
|

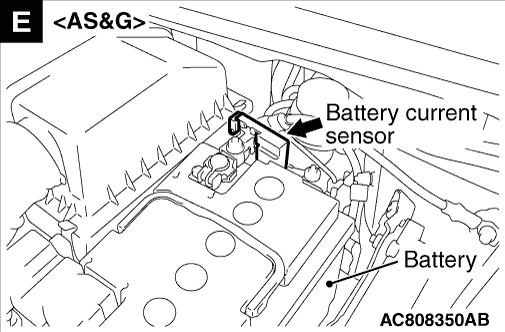

Battery current sensor <AS&G>
|
E
|

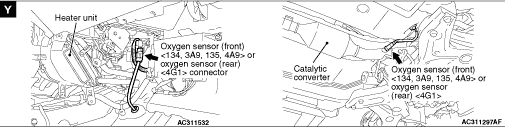

Oxygen sensor (front) <134, 3A9, 135, 4A9>
|
Y
|

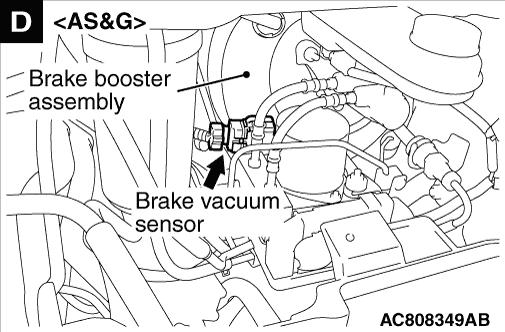

Brake vacuum sensor <AS&G>
|
D
|

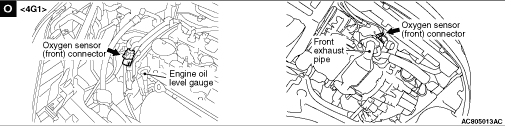

Oxygen sensor (front) <4G1>
|
O
|
Camshaft position sensor <134, 3A9, 135, 4A9>
|
B
|

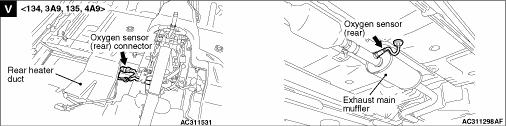

Oxygen sensor (rear) <134, 3A9, 135, 4A9>
|
V
|
Camshaft position sensor <4G1>
|
M
|
Oxygen sensor (rear) <4G1>
|
Y
|

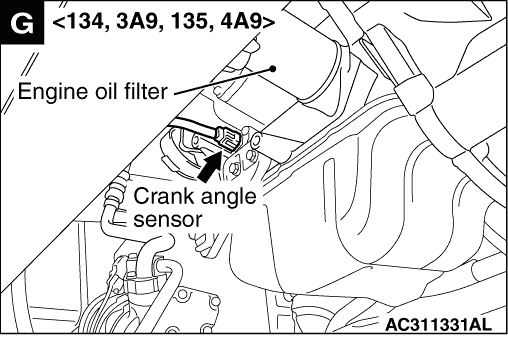

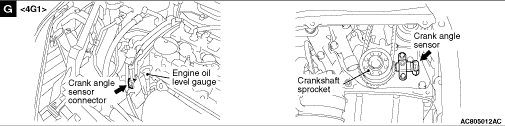

Crank angle sensor
|
G
|

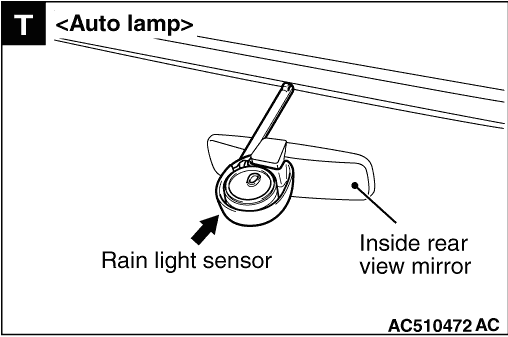

Rain light sensor <Auto lamp>
|
T
|

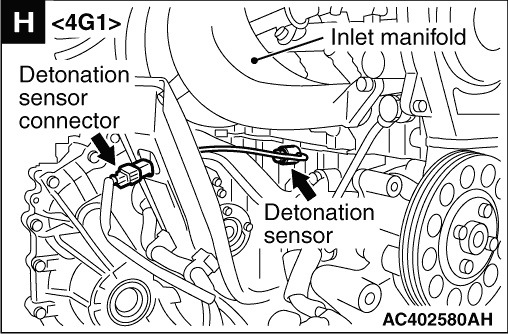

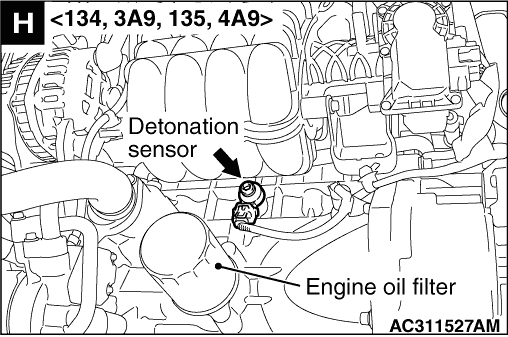

Detonation sensor
|
H
|

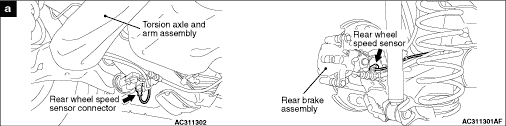

Rear wheel speed sensor
|
a
|

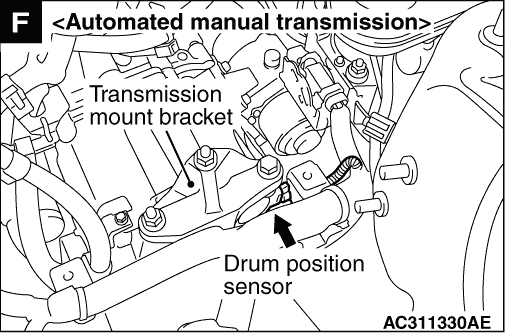

Drum position sensor <Automated manual transmission>
|
F
|

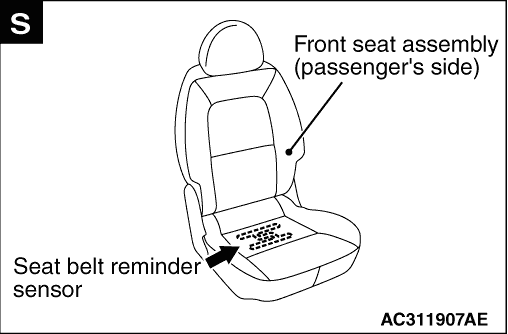

Seat belt reminder sensor
|
S
|
Electronic throttle control valve assembly (incorporating throttle position
sensor) <134, 3A9, 135, 4A9>
|
B
|

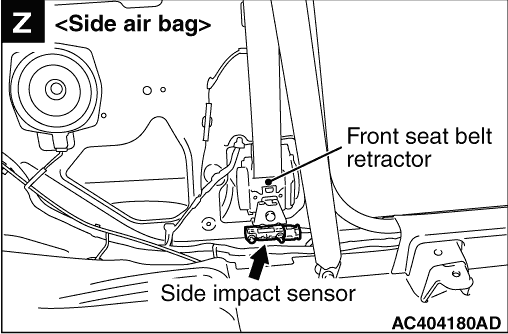

Side impact sensor <Side-airbag>
|
Z
|

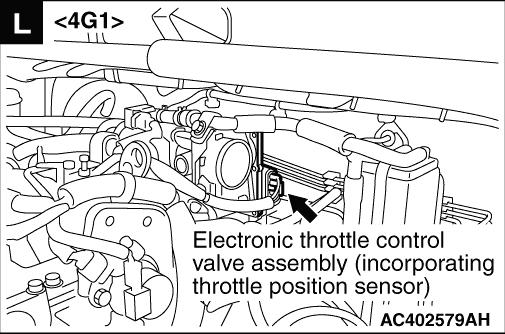

Electronic throttle control valve assembly (incorporating throttle position
sensor) <4G1>
|
L
|

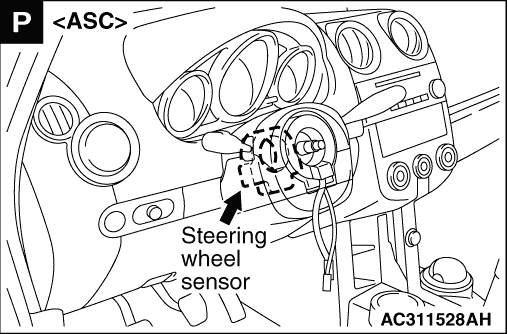

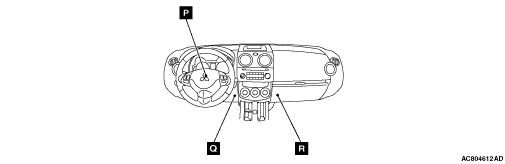

Steering wheel sensor <ASC>
|
P
|

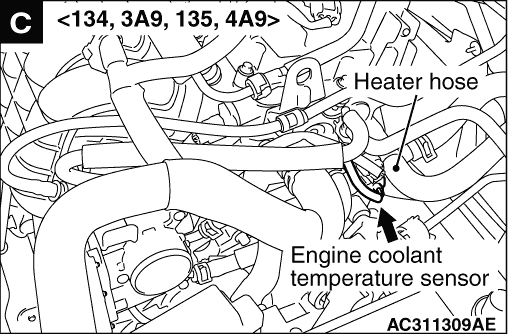

Engine coolant temperature sensor <134, 3A9, 135, 4A9>
|
C
|

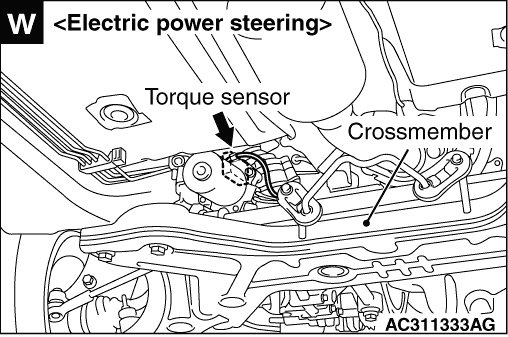

Torque sensor <Electric power steering>
|
W
|

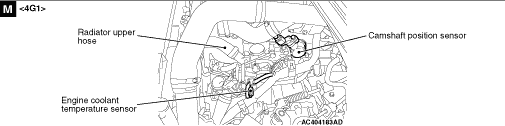

Engine coolant temperature sensor <4G1>
|
M
|
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
