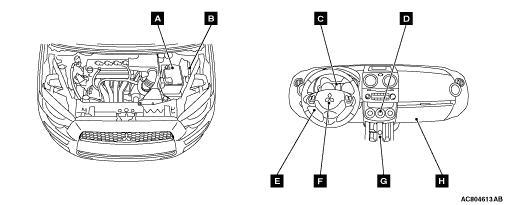

| Name |
Symbol |
Name |
Symbol |
| A/C-ECU |
D |

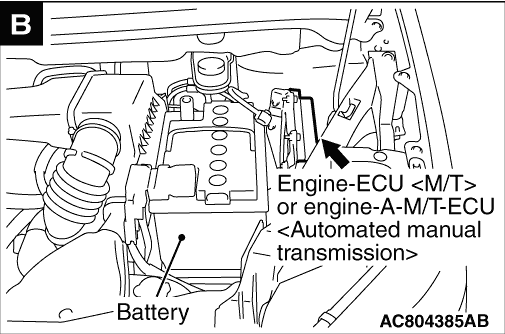

Engine-ECU <M/T> |
B |

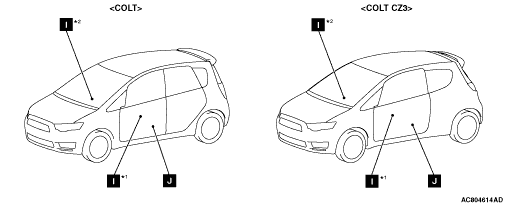

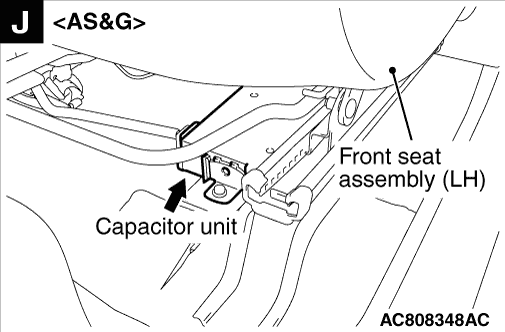

| Capacitor unit <AS&G> |
J |

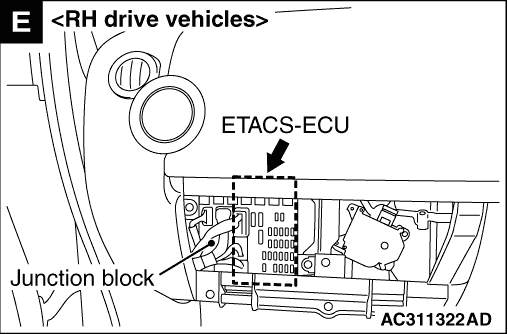

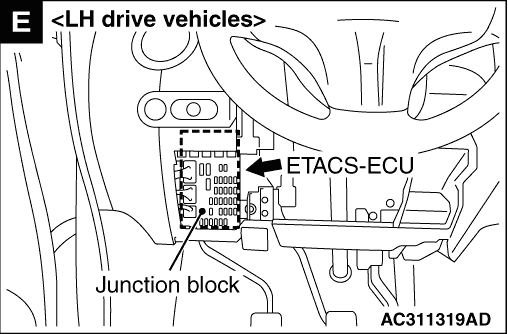

ETACS-ECU |
E |

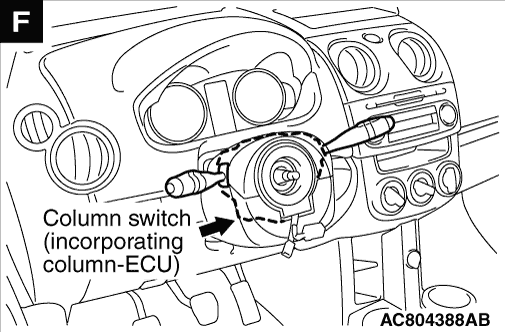

| Column switch (incorporating column-ECU) |
F |

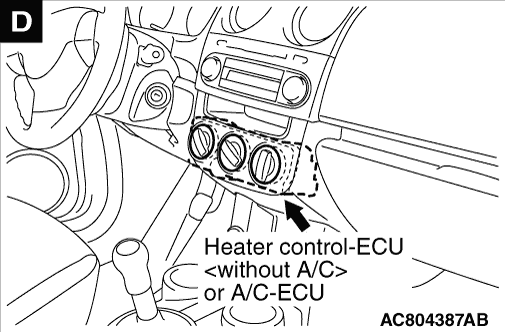

Heater control-ECU <without A/C> |
D |

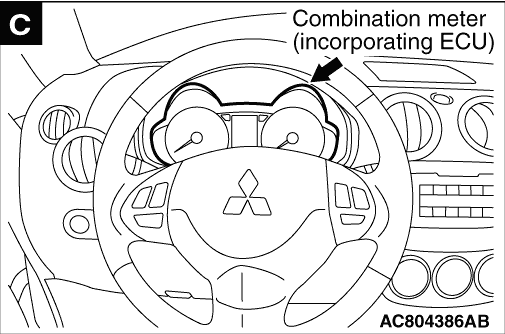

| Combination meter (incorporating ECU) |
C |

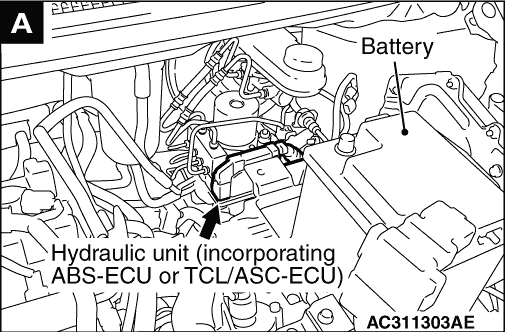

Hydraulic unit (incorporating ABS-ECU or TCL/ASC-ECU) |
A |

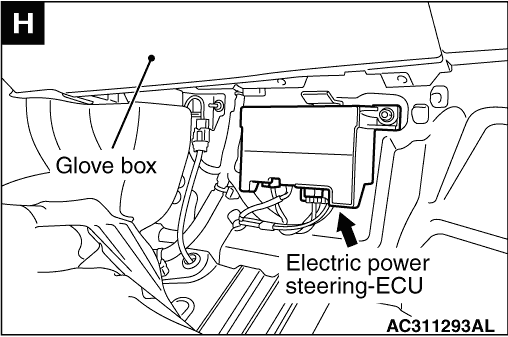

| Electric power steering-ECU |
H |

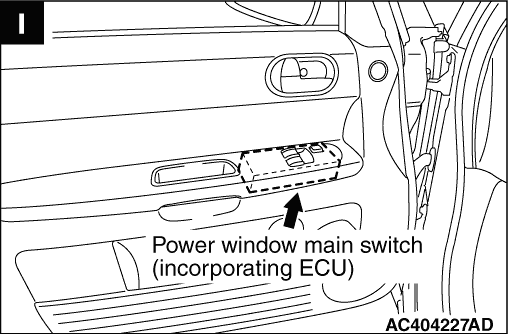

Power window main switch (incorporating ECU) |
I |
| Engine-A-M/T-ECU <Automated manual transmission> |
B |

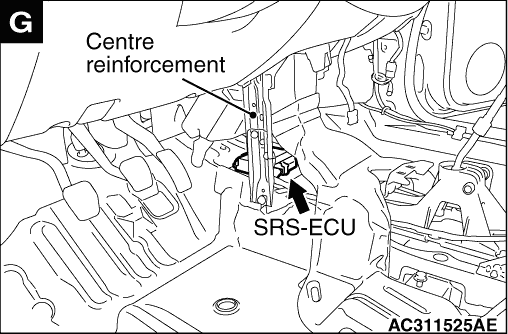

SRS-ECU |
G |
)
