Name
|
Symbol
|
Name
|
Symbol
|

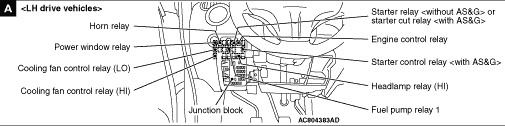

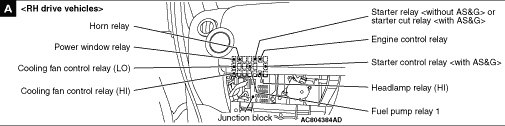

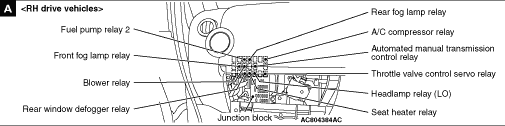

A/C compressor relay
|
A
|
Headlamp relay (LO)
|
A
|
Automated manual transmission control relay
|
A
|
Horn relay
|
A
|
Blower relay
|
A
|
Power window relay
|
A
|
Cooling fan control relay (HI)
|
A
|
Rear fog lamp relay
|
A
|
Cooling fan control relay (LO)
|
A
|
Rear window defogger relay
|
A
|
Engine control relay
|
A
|
Seat heater relay
|
A
|
Front fog lamp relay
|
A
|
Starter cut relay <with AS&G>
|
A
|
Fuel pump relay 1
|
A
|
Starter relay <without AS&G>
|
A
|
Fuel pump relay 2
|
A
|
Starter control relay <with AS&G>
|
A
|
Headlamp relay (HI)
|
A
|
Throttle valve control servo relay
|
A
|
)
)
)
)
)
