GENERAL INFORMATION

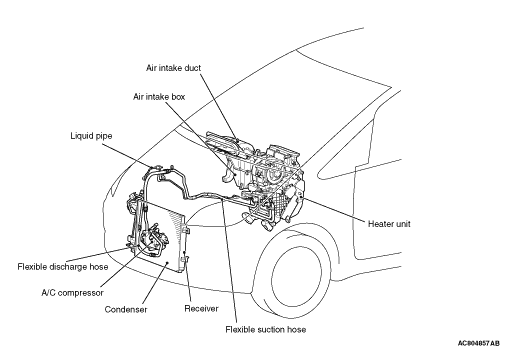

As for heater and A/C/ventilation system, a heater and an A/C are available. The heater unit integrates the heater, blower, and cooling unit, and features compact and lightweight structure.

FEATURES

IMPROVEMENTS IN COMFORT

Adoption of low noise, large air volume heater and A/C system
Adoption of smaller air intake box for larger passenger leg space.
Adoption of rear heater duct for improved rear seat passenger’s comfort. <Option>
A clean air filter with deodorant function has been adopted for cleaner air in the compartment.

FOR IMPROVED APPEARANCE

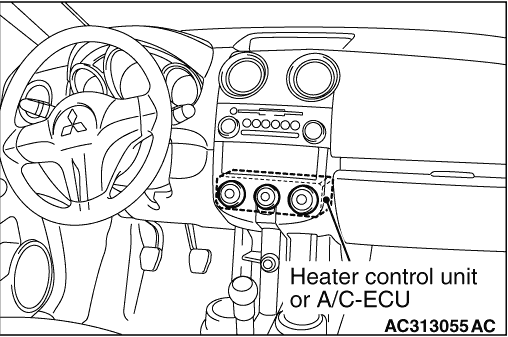

Translucent dials on the A/C control panel match the audio system design.
Silver dials for improved appearance

IMPROVEMENTS IN OPERATION PERFORMANCE

Dials are illuminated while the lighting switch is on for improved operability during night time.
Outside/inside air selection switch has been changed to a pushbutton switch.

RELIABLE VISUAL FIELD (IMPROVEMENT IN SAFETY)

Wind velocity type defroster nozzle has been adopted to improve defogging performance (Shortens windshield defogging time).
Defroster vents with guide fins have been adopted to secure better defogging pattern.

IMPROVEMENTS IN FUEL ECONOMY

Wider condenser area reduces load to the A/C and improves fuel consumption.
Compact, lightweight heater unit and cooling unit have been adopted.
Reduced numbers of wirings and lighter vehicle weight from installation of CAN communication system

GLOBAL ENVIRONMENT PROTECTION

Adoption of HFC134a for refrigerant.

IMPROVEMENTS IN SERVICE QUALITY

Reduction of refrigerant gas leakage and improvement in serviceability by incorporating condenser and receiver
Clean air filter replacement procedure has been simplified.

RESPONSIBILITY IMPROVEMENT

Reliable information transmission is achieved by connecting A/C-ECU and each ECU via CAN communication.

SPECIFICATIONS

Item		Specification
Heater control type		Rotary type
A/C	Heating capacity (W)	5,140
A/C	Cooling capacity (W)	4,300
Compressor type	Vehicles without capacity up A/C	MSC60CA
Compressor type	Vehicles with capacity up A/C	MSC60CAS
Refrigerant	Type	HFC134a
Refrigerant	Charge quantity (g)	430 ± 20
