REMOVAL AND INSTALLATION

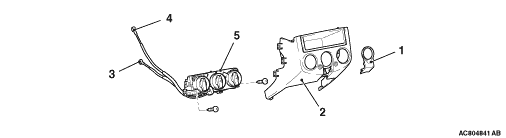

		Removal steps
	1.	Accent panel
	2.	Centre panel (Refer to GROUP 52A, Instrument Panel ).
	·	Radio or radio with CD player <vehicles with radio or radio with CD player> (Refer to GROUP 54A, Radio or radio with CD player ).
	·	Instrument panel pad (passenger’s side) (Refer to GROUP 52A, Instrument panel ).
>>A<<	3.	Mode selection damper cable connection (Clip: green)
>>A<<	4.	Mode selection damper cable connection (Clip: blue)
	5.	Heater control panel assembly

INSTALLATION SERVICE POINT

1.Set the Semi automatic air conditioner control panel assembly’s Mode selection knob to the DEF position.

2.Set the mode selection damper lever as shown, and then secure the cable.
3.Secure the cable clip to the heater unit.

note

The control wire shall be correctly installed. If the routing is incorrect, the dial operating force will become great.
