REMOVAL AND INSTALLATION


Pre-removal Operation
  • Engine coolant Draining (Refer to GROUP 14, Engine Coolant Replacement <Except 4G1> or <4G1>).
  • Air cleaner Removal (Refer to GROUP 15, Air Cleaner <Except 4G1> or <4G1>).
  • Canister Removal.
  • Front seat assembly Removal (Refer to GROUP 52A, Front Seat Assembly ).
  • Rear heater duct Removal (Refer to ).
  • Instrument panel Removal (Refer to GROUP 52A, Instrument Panel ).
  • SRS-ECU Removal (Refer to GROUP 52B, SRS Air Bag ).

 Post-installation Operation
  • SRS-ECU Installation (Refer to GROUP 52B, SRS Air Bag ).
  • Instrument panel Installation (Refer to GROUP 52A, Instrument Panel ).
  • Rear heater duct Installation (Refer to ).
  • Front seat assembly Installation (Refer to GROUP 52A, Front Seat Assembly ).
  • Canister Installation.
  • Air cleaner Installation (Refer to GROUP 15, Air Cleaner <Except 4G1> or < 4G1>).
  • Engine coolant Refilling (Refer to <Except 4G1> or <4G1>).

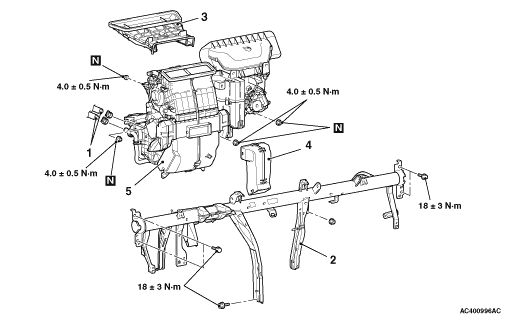

Removal steps


·
 Harness and clamp


·
 Junction block installation


1.
 Heater hose


·
 Steering column assembly (Refer to GROUP 37, Steering shaft )


2.
 Front deck cross member


·
 Accelerator pedal assembly (Refer to GROUP 17, Accelerator pedal )


3.
 Centre duct


4.
 Rear heater centre duct


5.
 Heater unit and air intake box
