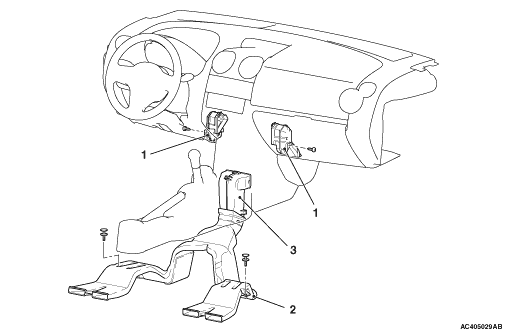

| Foot duct removal steps |
|||
| · |
Glove box assembly (Refer to GROUP 52A, Instrument panel  ). |
||
| 1. |
Foot duct |
||
| Rear heater duct removal steps |
|||
| · |
Cowl side trim, Front scuff plate (Refer to GROUP 52A, Interior Trim <COLT>
, <COLT CZ3>). |
||
| · |
Floor console (Refer to GROUP 52A, Floor console ). |
||
| · |
Floor carpet. |
||
| · |
Front seat assembly (Refer to GROUP 52A, Front Seat Assembly ). |
||
| 2. |
Rear heater duct |
||
| Rear heater centre duct removal steps |
|||
| · |
Front deck cross member (Refer to ). |
||
| 3. |
Rear heater centre duct |
