REMOVAL AND INSTALLATION


Pre-removal and Post-installation Operation
  • Refrigerant Draining and Refilling (Refer to and ).

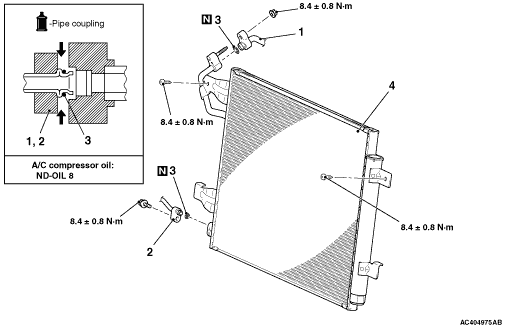

Removal steps


·
 Radiator (Refer to GROUP 14, Radiator <Except 4G1> or <4G1>).
<<A>>
1.
 Flexible discharge hose connection
<<A>>
2.
 Liquid pipe connection


3.
 O-ring


4.
 A/C condenser assembly

REMOVAL SERVICE POINT

<<A>> HOSE/PIPE DISCONNECTION
caution As the compressor oil and receiver are highly moisture absorbent, use a non-porous material to plug the hose and nipples.
To prevent the entry of other foreign bodies, plug the condenser, compressor, and expansion valve nipples.
