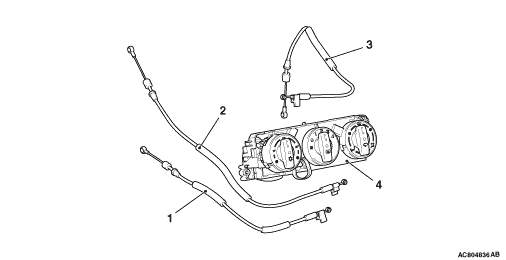

| Disassembly steps |
|||
<<A>> |
1. |
Mode selection damper control cable (Clip: green) |
|
| <<A>> |
2. |
Mode selection damper control cable (Clip: blue) |
|
| 3. |
Air mixing damper control cable |
||
| 4. |
Heater control panel (heater-ECU) |
|
|

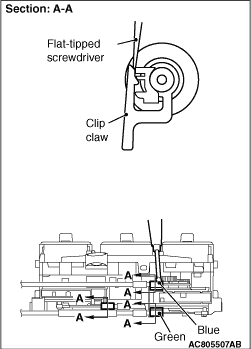

DISASSEMBLY SERVICE POINT |
<<A>> MODE SELECTION DAMPER CABLE AND AIR MIXING DAMPER CABLE REMOVAL |
) |
Insert a flat-tipped screwdriver into the clip through the inside of the control base
and prize out the clip claw to disconnect the cables. |
