REMOVAL AND INSTALLATION


Pre-removal and Post-installation Operation
  • Refrigerant Draining and Refilling (Refer to and ).

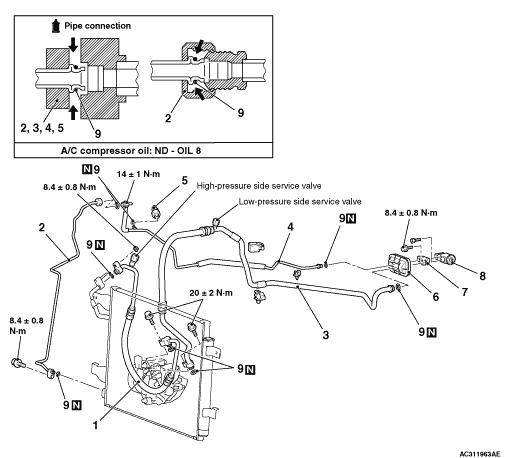

Removal steps
<<A>>
1.
 Flexible discharge hose
<<A>>
2.
 Liquid pipe A
<<A>>
 >>A<<
 3.
 Flexible suction hose
<<A>>
4.
 Liquid pipe B
<<A>>
5.
 A/C pressure sensor


6.
 Expansion valve cover


7.
 E-Plate


8.
 Expansion valve


9.
 O-ring

REMOVAL SERVICE POINT

<<A>> HOSE/PIPE/A/C PRESSURE SENSOR DISCONNECTION
caution As the compressor oil and receiver are highly moisture absorbent, use a non-porous material to plug the hose and nipples.
To prevent the entry of other foreign bodies, plug the condenser, compressor, and expansion valve nipples.

INSTALLATION SERVICE POINT

>>A<< FLEXIBLE SUCTION HOSE INSTALLATION
When replacing the suction hose, refill them with a specified amount of compressor oil, and then install them.
Compressor oil: ND-OIL 8
Quantity: Suction hose: 10 mL
