SPECIAL TOOLS


Tool
Tool number
Name
Use


MB990810
Side bearing puller
A/C compressor rotor removal and installation


MB992625
Guide


MB992626
Pusher


MD999566
Claw


MB991367
Special spanner
Removal and installation of the A/C compressor armature mounting nut


MB991386
Pin


MB991223

  1. MB991219
  2. MB991220
  3. MB991221
  4. MB991222
Harness set

  1. Test harness
  2. LED harness
  3. LED harness adapter
  4. Probe
Making voltage and resistance measurements during troubleshooting

  1. Connect pin contact pressure inspection
  2. Power circuit inspection
  3. Power circuit inspection
  4. Commercial tester connection


MB992006
Extra fine probe
Continuity check and voltage measurement at harness wire or connector


MB991658
Test harness set
Inspection of throttle position sensor

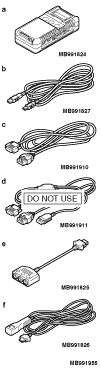

MB991955

  1. MB991824
  2. MB991827
  3. MB991910
  4. MB991911
  5. MB991825
  6. MB991826
M.U.T.-III sub-assembly

  1. Vehicle Communication Interface (V. C. I).
  2. USB cable
  3. M.U.T.-III main harness A (applicable to vehicles with CAN communication)
  4. M.U.T.-III main harness B (applicable to vehicles without CAN communication)
  5. Measurement adapter
  6. Trigger harness
caution For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly.
Check the A/C (The M.U.T.-III diagnosis codes display, service data display and actuator test)
