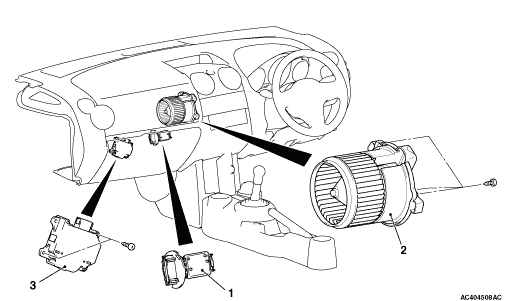

Resistor removal step
|
|
|
·
|
Under cover (Refer to GROUP 52A, Instrument Panel  ).
|
|
|
1.
|
Resistor
|
|
|
|
Blower motor removal step
|
|
|
·
|
Under cover (Refer to GROUP 52A, Instrument Panel ).
|
|
|
·
|
Steering gear and steering column assembly connection (Refer to GROUP
37, Power Steering ).
|
|
|
·
|
Console side cover (Refer to GROUP 52A, Floor console ).
|
|
|
·
|
Foot duct (Refer to ).
|
|
|
2.
|
Blower motor
|
|
|
|
Outside/Inside air selection damper control motor removal step
|
|
|
·
|
Glove box (Refer to GROUP 52A, Instrument Panel ).
|
|
|
3.
|
Outside/inside air selection damper control motor
|
)
