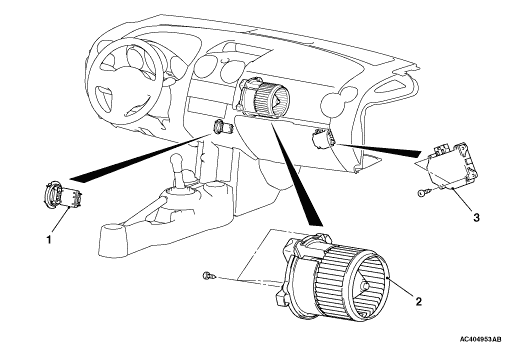

| Resistor removal step |
|||
| · |
Under cover (Refer to GROUP 52A, Instrument Panel  ). |
||
| 1. |
Resistor |
||
| Blower motor removal step |
|||
| · |
Under cover (Refer to GROUP 52A, Instrument Panel ). |
||
| · |
Console side cover (Refer to GROUP 52A, Floor console ). |
||
| · |
Foot duct Refer to ). |
||
| 2. |
Blower motor |
||
| Outside/inside air selection damper control motor removal step |
|||
| · |
Glove box (Refer to GROUP 52A, Instrument Panel ). |
||
| 3. |
Outside/inside air selection damper control motor |
