STRUCTURE

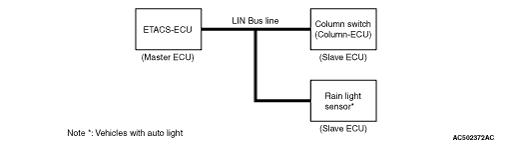

Master and slave ECUs are connected to the LIN bus lines. The master ECU is the ETACS-ECU, and the slave ECUs are the column switch (column-ECU), and the rain light sensor. The master ECU requests these slave ECUs to communicate each other via communication lines.
