DIAGNOSIS SYSTEM


Service quality has been improved by fitting diagnosis connectors for the M.U.T.-III inspection near the right knee area of the driver’s seat on the instrument panel.
System name
 Diagnosis code set
 Output of service data
 Actuator test
 Erasure of diagnosis code by the M.U.T.-III
 Freeze frame data
Special function
MPI
 ·
 ·
 ·
 ·
 ·
 ·
Immobilizer
 ·
 ·
 -
 ·
 ·
 ·
Automated manual transmission
 ·
 ·
 -
 ·
 ·
 ·
Electric power steering
 ·
 ·
 ·
 ·
 -
 ·
ABS
 ·
 ·
 ·
 ·
 -
 ·
ASC (TCL/ASC)
 ·
 ·
 ·
 ·
 -
 ·
SRS air bag
 ·
 ·
 ·
 ·
 -
 ·
A/C
 ·
 ·
 ·
 ·
 -
 ·
ETACS
 ·
 ·
 ·
 ·
 ·
 ·
Combination meter
 ·
 ·
 ·
 ·
 -
 ·
note
  1. ·: Indicates that the diagnosis function is set.
  2. -: Indicates that the diagnosis function is not set.

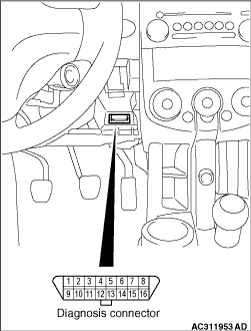

DIAGNOSIS CONNECTOR

Diagnosis connector
Terminal No.
 Connecting contents
1 to 3
 -
4, 5
 Earth
6
 CAN communication line (CAN_H)
7
 MPI, Automated Manual Transmission
8 to 10
 -
11
 ECU optimisation control
12, 13
 -
14
 CAN communication line (CAN_L)
15
 -
16
 Battery power supply
