Inspection Procedure F-6: The headlamp(s) do not illuminate.
|
|
| caution |
Whenever the ECU is replaced, ensure that the input and output signal circuits are normal.
|
|
COMMENTS ON TROUBLE SYMPTOM
If the headlamps does not illuminate, the wiring harness connector(s), the bulb or the fuse may be defective or burned out.
PROBABLE CAUSES
- Malfunction of the headlamp bulbs
- Damaged harness wires and connectors
|
|
STEP 1. Connector check: A-11 front combination lamp (LH) connector or A-25 front combination lamp (RH) connector
|
|
Q.
Is the check result normal?
YES <Either of LH side and RH side does not illuminate) : Go to Step 2.
YES <Low-beam of LH side or RH side does not illuminate> : Go to Step 5.
YES <High-beam of LH side or RH side does not illuminate> : Go to Step 9.
NO <The connectors are not in good condition> : Repair the defective connector.
|
|
|

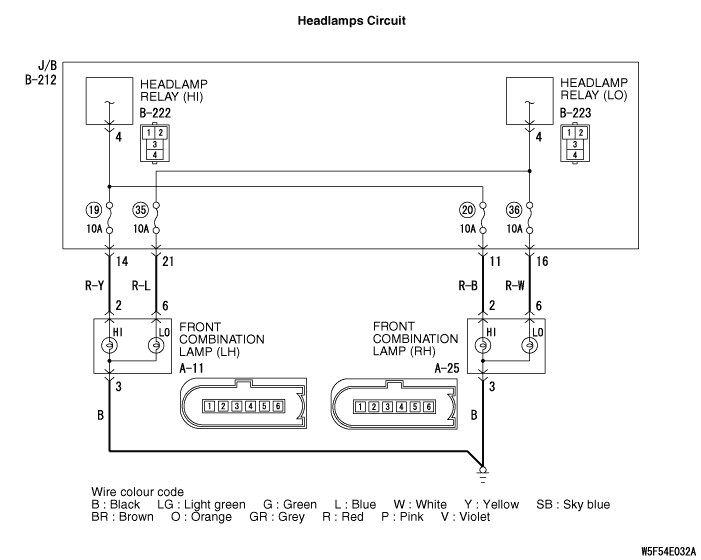

STEP 2. Resistance measurement at the A-11 front combination lamp (LH) connector or the A-25 front combination lamp (RH) connector.
|
|
(1)Disconnect the connector, and measure at the wiring harness side.
|
|
(2)Check the resistance between the lamp connector and body earth.
- Resistance between A-11 front combination lamp (LH) connector terminal No.3 and body earth
- Resistance between A-25 front combination lamp (RH) connector terminal No.3 and body earth
OK: Continuity exists (2 Ω or less)
Q.
Is the check result normal?
 Go to Step 4.
 Go to Step 3.
|
|
|
STEP 3. Check the wiring harness from A-11 front combination lamp (LH) connector terminal No.3 or A-25 front combination lamp (RH) connector terminal No.3 to body earth.
|
|
- Check the earth wires for open circuit.
Q.
Is the check result normal?
The trouble can be an intermittent malfunction (Refer to GROUP 00 - How to use Troubleshooting/inspection Service Points - How to Cope with Intermittent Malfunction  ).
Repair the wiring harness.
|
|
|
STEP 4. Retest the system.
|
|
|
(1)Replace the socket of the defective headlamp.
|
|
|
(2)Check that the headlamps illuminate normally.
|
|
|
Q.
Is the check result normal?
|
|
|
The trouble can be an intermittent malfunction (Refer to GROUP 00 - How to use Troubleshooting/inspection Service Points - How to Cope with Intermittent Malfunction ).
|
|
|
|
|
|
Replace the front combination lamp.
|
|
|
|
|
|
STEP 5. Check the bulb(s) of the headlamps.
|
|
|
Check the bulb(s) of the defective lamp.
|
|
|
Q.
Is the check result normal?
|
|
|
Go to Step 6.
|
|
|
|
|
|
Replace the bulb(s) of the defective lamp.
|
|
|
|
|
|

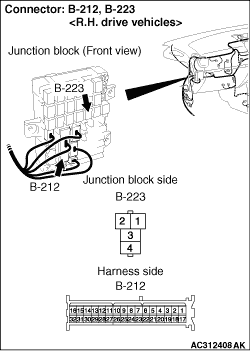

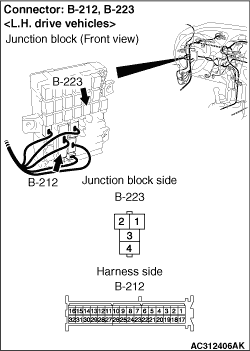

STEP 6. Connector check: B-223 headlamp relay (LO) connector
|
|
Q.
Is the check result normal?
Go to Step 7.
Repair the defective connector.
|
|
|
STEP 7. Check the wiring harness from A-11 front combination lamp (LH) connector terminal No.6 or A-25 front combination lamp (RH) connector terminal No.6 to B-223 headlamp relay (LO) connector terminal No.4.
|
|
| note |
Prior to the wiring harness inspection, check junction block connector B-212, and repair if necessary.
|
- Check the output lines for open circuit.
Q.
Is the check result normal?
Go to Step 8.
Repair the wiring harness.
|
|
|
STEP 8. Retest the system.
|
|
|
(1)Replace the socket of the defective headlamp.
|
|
|
(2)Check that the headlamps illuminate normally.
|
|
|
Q.
Is the check result normal?
|
|
|
The trouble can be an intermittent malfunction (Refer to GROUP 00 - How to use Troubleshooting/inspection Service Points - How to Cope with Intermittent Malfunction ).
|
|
|
|
|
|
Replace the front combination lamp.
|
|
|
|
|
|
STEP 9. Check the bulb(s) of the headlamps.
|
|
|
Check the bulb(s) of the defective lamp.
|
|
|
Q.
Is the check result normal?
|
|
|
Go to Step 10.
|
|
|
|
|
|
Replace the bulb(s) of the defective lamp.
|
|
|
|
|
|

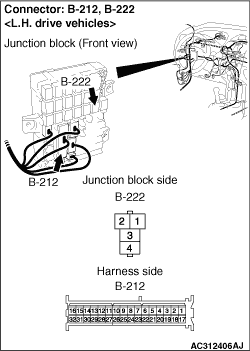

STEP 10. Connector check: B-222 headlamp relay (HI) connector
|
|
Q.
Is the check result normal?
Go to Step 11.
Repair the defective connector.
|
|
|
STEP 11. Check the wiring harness from A-11 front combination lamp (LH) connector terminal No.2 or A-25 front combination lamp (RH) connector terminal No.2 to B-222 headlamp relay (HI) connector terminal No.4.
|
|
| note |
Prior to the wiring harness inspection, check junction block connector B-212, and repair if necessary.
|
- Check the output lines for open circuit.
Q.
Is the check result normal?
Go to Step 12.
Repair the wiring harness.
|
|
|
STEP 12. Retest the system.
|
|
|
(1)Replace the socket of the defective headlamp.
|
|
|
(2)Check that the headlamps illuminate normally.
|
|
|
Q.
Is the check result normal?
|
|
|
The trouble can be an intermittent malfunction (Refer to GROUP 00 - How to use Troubleshooting/inspection Service Points - How to Cope with Intermittent Malfunction ).
|
|
|
|
|
|
Replace the front combination lamp.
|
|
|
|
)
)
)
)
)
)
)
)
)
)
)
)
