Diagnosis Item 5: Diagnose the CAN bus lines for short to earth <Vehicles without A/C and TCL/ASC system>


caution When servicing a CAN bus line, earth yourself by touching a metal object such as an unpainted water pipe. If you fail to do, a component connected to the CAN bus line may be broken.



TROUBLE JUDGMENT


The CAN bus line has been shorted to earth if the voltage between the CAN bus line (CAN_L or CAN_H) and body earth is less than 1.0 V. In this condition, an abnormal voltage may be measured at CAN_L and CAN_H lines.

COMMENTS ON TROUBLE SYMPTOM


The wiring harness wire or connectors may have loose, corroded, or damage terminals, or terminals pushed back in the connector, or an ECU may be defective.

POSSIBLE CAUSES



DIAGNOSIS PROCEDURE

STEP 1. Connector check: A-09 engine-ECU <M/T (except 1500-T/C) > or engine-A-M/T-ECU <Automated manual transmission> connector, A-35 engine-ECU <M/T (1500-T/C) >, B-19 combination meter connector and B-16 diagnosis connector



caution The strand end of the twist wire should be within 10 cm from the connector. For details refer to .

Q. Are the check results normal?

Go to Step 2.

Repair the defective connector.

STEP 2. Resistance measurement at the B-16 diagnosis connector.
caution A digital multimeter should be used. For details refer to .
caution The test wiring harness should be used. For details refer to .



(1)Disconnect the engine-ECU <M/T> or engine-A-M/T-ECU <Automated manual transmission> connector and the combination meter connector, and measure at the wiring harness side.
(2)Ensure that the negative battery terminal is disconnected.

(3)Resistance between B-16 diagnosis connector terminal No.14 and body earth
OK: 1 kΩ or more

(4)Resistance between B-16 diagnosis connector terminal No.6 and body earth
OK: 1 kΩ or more
(5)Disconnect the negative battery terminal.

Q. Are the check results normal?

YES <all of the measurement results show 1 kΩ or more> : It is determined that there is an intermittent malfunction such as poor engaged connector(s) or open circuit (Refer to GROUP 00, How to Cope with Intermittent Malfunction ).

NO <The resistance between terminal No.14 and body earth is less than 1 kΩ> : Go to Step 3.

NO <The resistance between terminal No.6 and body earth is less than 1 kΩ> : Go to Step 22.

STEP 3. Connector check: B-118 intermediate connector


caution The strand end of the twist wire should be within 10 cm from the connector. For details refer to .

Q. Is the check result normal?

Go to Step 4.

Repair the defective connector.

STEP 4. Resistance measurement at the B-118 intermediate connector.
caution A digital multimeter should be used. For details refer to .
caution The test wiring harness should be used. For details refer to .


(1)Disconnect the connector, and measure at its female-side intermediate connector (at the front wiring harness side).
(2)
caution When measuring the resistance, disconnect the negative battery terminal. For details refer to .
Ensure that the negative battery terminal is disconnected.

(3)Resistance between B-118 intermediate connector terminal No.12 and body earth
OK: 4.0 V or less

Q. Is the check result normal?

<1 kΩ or more> Go to Step 5.

<less than 1 kΩ> Go to Step 14.

STEP 5. Connector check: B-03 joint connector (CAN1)


caution The strand end of the twist wire should be within 10 cm from the connector. For details refer to .

When checking the joint connector, ensure that its wiring harness side and its short pins are not damaged.

Q. Is the check result normal?

Go to Step 6.

Repair a defective connector or replace the joint connector.

STEP 6. Resistance measurement at B-03 joint connector (CAN1).
caution A digital multimeter should be used. For details refer to .
caution The test wiring harness should be used. For details refer to .


(1)Disconnect the connector, and measure at the wiring harness side.
(2)
caution When measuring the resistance, disconnect the negative battery terminal. For details refer to .
Ensure that the negative battery terminal is disconnected.

(3)Resistance between B-03 joint connector (CAN1) terminal No.15 and body earth
OK: 1 kΩ or more

(4)Resistance between B-03 joint connector (CAN1) terminal No.16 and body earth
OK: 1 kΩ or more

(5)Resistance between B-03 joint connector (CAN1) terminal No.18 and body earth
OK: 1 kΩ or more

(6)Resistance between B-03 joint connector (CAN1) terminal No.21 and body earth
OK: 1 kΩ or more

Q. Are the check results normal?

YES <all of the measurement results show 1 kΩ or more> : Go to Step 13.

NO <The resistance between terminal No.15 and body earth is less than 1 kΩ> : Go to Step 7.

NO <The resistance between terminal No.16 and body earth is less than 1 kΩ> : Go to Step 8.

NO <The resistance between terminal No.18 and body earth is less than 1 kΩ> : Go to Step 10.

NO <The resistance between terminal No.21 and body earth is less than 1 kΩ> : Go to Step 12.

STEP 7. Resistance measurement at B-03 joint connector (CAN1).
caution A digital multimeter should be used. For details refer to .
caution The test wiring harness should be used. For details refer to .


(1)Disconnect the joint connector (CAN1) and the combination meter connector, and measure at the wiring harness side.
(2)
caution When measuring the resistance, disconnect the negative battery terminal. For details refer to .
Ensure that the negative battery terminal is disconnected.

(3)Resistance between B-03 joint connector (CAN1) terminal No.15 and body earth
OK: 1 kΩ or more
(4)
caution Strictly observe the specified wiring harness repair procedure. For details refer to .

Q. Is the check result normal?

<1 kΩ or more> It is determined that there is an intermittent malfunction such as poor engaged connector(s) or open circuit (Refer to GROUP 00, How to Cope with Intermittent Malfunction ).

<less than 1 kΩ> Repair the wiring harness between joint connector (CAN1) and the combination meter connector.

STEP 8. Connector check: B-233 ETACS-ECU connector


caution The strand end of the twist wire should be within 10 cm from the connector. For details refer to .

Q. Is the check result normal?

Go to Step 9.

Repair the defective connector.

STEP 9. Resistance measurement at B-03 joint connector (CAN1).
caution A digital multimeter should be used. For details refer to .
caution The test wiring harness should be used. For details refer to .




(1)Disconnect the joint connector (CAN1) and the ETACS-ECU connector, and measure at the wiring harness side.
(2)
caution When measuring the resistance, disconnect the negative battery terminal. For details refer to .
Ensure that the negative battery terminal is disconnected.

(3)Resistance between B-03 joint connector (CAN1) terminal No.16 and body earth
OK: 1 kΩ or more
(4)
caution Strictly observe the specified wiring harness repair procedure. For details refer to .

Q. Is the check result normal?

<1 kΩ or more> It is determined that there is an intermittent malfunction such as poor engaged connector(s) or open circuit (Refer to GROUP 00, How to Cope with Intermittent Malfunction ).

<less than 1 kΩ> Repair the wiring harness between the joint connector (CAN1) and the ETACS-ECU connector.

STEP 10. Connector check: B-109 SRS-ECU connector


caution The strand end of the twist wire should be within 10 cm from the connector. For details refer to .

Q. Is the check result normal?

Go to Step 11.

Repair the defective connector.

STEP 11. Resistance measurement at B-03 joint connector (CAN1).
caution A digital multimeter should be used. For details refer to .
caution The test wiring harness should be used. For details refer to .


(1)Disconnect the joint connector (CAN1) and the SRS-ECU connector, and measure at the wiring harness side.
(2)
caution When measuring the resistance, disconnect the negative battery terminal. For details refer to .
Ensure that the negative battery terminal is disconnected.

(3)Resistance between B-03 joint connector (CAN1) terminal No.18 and body earth
OK: 1 kΩ or more
(4)
caution Strictly observe the specified wiring harness repair procedure. For details refer to .

Q. Is the check result normal?

<1 kΩ or more> It is determined that there is an intermittent malfunction such as poor engaged connector(s) or open circuit (Refer to GROUP 00, How to Cope with Intermittent Malfunction ).

<less than 1 kΩ> Repair the wiring harness between the joint connector (CAN1) and the SRS-ECU connector.

STEP 12. Resistance measurement at B-03 joint connector (CAN1).
caution A digital multimeter should be used. For details refer to .
caution The test wiring harness should be used. For details refer to .


(1)Disconnect the connector, and measure at the wiring harness side.
(2)
caution When measuring the resistance, disconnect the negative battery terminal. For details refer to .
Ensure that the negative battery terminal is disconnected.

(3)Resistance between B-03 joint connector (CAN1) terminal No.21 and body earth
OK: 1 kΩ or more
(4)
caution Strictly observe the specified wiring harness repair procedure. For details refer to .

Q. Is the check result normal?

<1 kΩ or more> It is determined that there is an intermittent malfunction such as poor engaged connector(s) or open circuit (Refer to GROUP 00, How to Cope with Intermittent Malfunction ).

<less than 1 kΩ> Repair the wiring harness between the joint connector (CAN1) and the diagnosis connector.

STEP 13. Resistance measurement at B-03 joint connector (CAN1).
caution A digital multimeter should be used. For details refer to .
caution The test wiring harness should be used. For details refer to .


(1)Disconnect the connector, and measure at the wiring harness side.
(2)
caution When measuring the resistance, disconnect the negative battery terminal. For details refer to .
Ensure that the negative battery terminal is disconnected.

(3)Resistance between B-03 joint connector (CAN1) terminal No.22 and body earth
OK: 1 kΩ or more
(4)
caution Strictly observe the specified wiring harness repair procedure. For details refer to .

Q. Is the check result normal?

<1 kΩ or more> It is determined that there is an intermittent malfunction such as poor engaged connector(s) or open circuit (Refer to GROUP 00, How to Cope with Intermittent Malfunction ).

<less than 1 kΩ> Repair the wiring harness between the joint connector (CAN1) and the intermediate connector.

STEP 14. Connector check: B-107 joint connector (CAN2)


caution The strand end of the twist wire should be within 10 cm from the connector. For details refer to .
When checking the joint connector, ensure that its wiring harness side is not damaged.

Q. Is the check result normal?

Go to Step 15.

Repair a defective connector or replace the joint connector (front wiring harness assembly).

STEP 15. Resistance measurement at the B-107 joint connector (CAN2).
caution A digital multimeter should be used. For details refer to .
caution The test wiring harness should be used. For details refer to .


(1)Disconnect the connector, and measure at the wiring harness side.
(2)
caution When measuring the resistance, disconnect the negative battery terminal. For details refer to .
Ensure that the negative battery terminal is disconnected.

(3)Resistance between B-107 joint connector (CAN2) terminal No.18 and body earth
OK: 1 kΩ or more

(4)Resistance between B-107 joint connector (CAN2) terminal No.22 and body earth
OK: 1 kΩ or more

(5)Resistance between B-107 joint connector (CAN2) terminal No.21 and body earth
OK: 1 kΩ or more

Q. Are the check results normal?

YES <all of the measurement results show 1 kΩ or more> : Go to Step 21.

NO <The resistance between terminal No.18 and body earth is less than 1 kΩ> : Go to Step 16.

NO <The resistance between terminal No.22 and body earth is less than 1 kΩ> : Go to Step 17.

NO <The resistance between terminal No.21 and body earth is less than 1 kΩ> : Go to Step 19.

STEP 16. Resistance measurement at the B-107 joint connector (CAN1).
caution A digital multimeter should be used. For details refer to .
caution The test wiring harness should be used. For details refer to .



(1)Disconnect the engine-ECU <M/T> or engine-A-M/T-ECU <Automated manual transmission> connector and the joint connector (CAN2), and measure at the wiring harness side.
(2)
caution When measuring the resistance, disconnect the negative battery terminal. For details refer to .
Ensure that the negative battery terminal is disconnected.

(3)Resistance between B-107 joint connector (CAN1) terminal No.18 and body earth
OK: 1 kΩ or more
(4)
caution Strictly observe the specified wiring harness repair procedure. For details refer to .

Q. Is the check result normal?

<<1 kΩ or more> It is determined that there is an intermittent malfunction such as poor engaged connector(s) or open circuit (Refer to GROUP 00, How to Cope with Intermittent Malfunction ).

<less than 1 Ω> Repair the wiring harness between the intermediate connector and the engine-ECU <M/T> or engine-A-M/T-ECU <Automated manual transmission> connector.

STEP 17. Connector check: A-05 ABS-ECU connector

caution The strand end of the twist wire should be within 10 cm from the connector. For details refer to .

Q. Is the check result normal?

Go to Step 18.

Repair the defective connector.

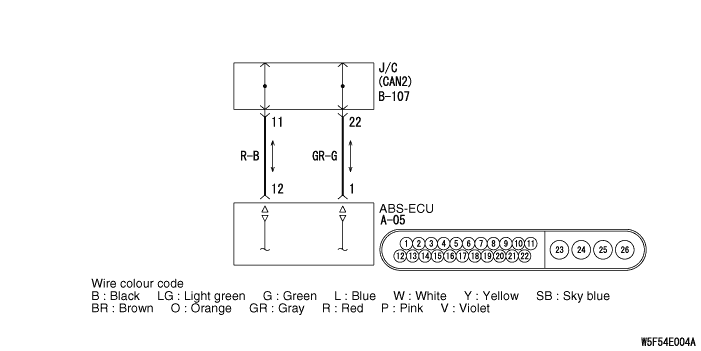

STEP 18. Resistance measurement at the B-107 joint connector (CAN2).
caution A digital multimeter should be used. For details refer to .
caution The test wiring harness should be used. For details refer to .



(1)Disconnect the joint connector (CAN2) and the ABS-ECU connector, and measure at the wiring harness side.
(2)
caution When measuring the resistance, disconnect the negative battery terminal. For details refer to .
Ensure that the negative battery terminal is disconnected.

(3)Resistance between B-107 joint connector (CAN2) terminal No.22 and body earth
OK: 1 kΩ or more
(4)
caution Strictly observe the specified wiring harness repair procedure. For details refer to .

Q. Is the check result normal?

<1 kΩ or more> It is determined that there is an intermittent malfunction such as poor engaged connector(s) or open circuit (Refer to GROUP 00, How to Cope with Intermittent Malfunction ).

<less than 1 kΩ> Repair the wiring harness between the joint connector (CAN2) and the ABS-ECU connector.

STEP 19. Connector check: B-106 electric power steering-ECU connector


caution The strand end of the twist wire should be within 10 cm from the connector. For details refer to .

Q. Is the check result normal?

Go to Step 20.

Repair the defective connector.

STEP 20. Resistance measurement at the B-107 joint connector (CAN2).
caution A digital multimeter should be used. For details refer to .
caution The test wiring harness should be used. For details refer to .


(1)Disconnect the joint connector (CAN2) and the electric power steering-ECU connector, and measure at the wiring harness side.
(2)
caution When measuring the resistance, disconnect the negative battery terminal. For details refer to .
Ensure that the negative battery terminal is disconnected.

(3)Resistance between B-107 joint connector (CAN2) terminal No.21 and body earth
OK: 1 kΩ or more
(4)
caution Strictly observe the specified wiring harness repair procedure. For details refer to .

Q. Is the check result normal?

<1 kΩ or more> It is determined that there is an intermittent malfunction such as poor engaged connector(s) or open circuit (Refer to GROUP 00, How to Cope with Intermittent Malfunction ).

<less than 1 kΩ> Repair the wiring harness between the joint connector (CAN2) and the electric power steering-ECU connector.

STEP 21. Resistance measurement at the B-107 joint connector (CAN2).
caution A digital multimeter should be used. For details refer to .
caution The test wiring harness should be used. For details refer to .



(1)Disconnect the joint connector (CAN2) and the intermediate connector, and measure at the wiring harness side.
(2)
caution When measuring the resistance, disconnect the negative battery terminal. For details refer to .
Ensure that the negative battery terminal is disconnected.

(3)Resistance between B-107 joint connector (CAN2) terminal No.20 and body earth
OK: 1 kΩ or more
(4)
caution Strictly observe the specified wiring harness repair procedure. For details refer to .

Q. Is the check result normal?

<1 kΩ or more> It is determined that there is an intermittent malfunction such as poor engaged connector(s) or open circuit (Refer to GROUP 00, How to Cope with Intermittent Malfunction ).

<less than 1 kΩ> Repair the wiring harness between the joint connector (CAN2) and the intermediate connector.

STEP 22. Connector check: B-118 intermediate connector


caution The strand end of the twist wire should be within 10 cm from the connector. For details refer to .

Q. Is the check result normal?

Go to Step 23.

Repair the defective connector.

STEP 23. Resistance measurement at the B-118 intermediate connector.
caution A digital multimeter should be used. For details refer to .
caution The test wiring harness should be used. For details refer to .


(1)Disconnect the connector, and measure at its female-side intermediate connector (at the front wiring harness side).
(2)
caution When measuring the resistance, disconnect the negative battery terminal. For details refer to .
Ensure that the negative battery terminal is disconnected.

(3)Resistance between B-118 intermediate connector terminal No.13 and body earth
OK: 1 kΩ or more

Q. Is the check result normal?

<1 kΩ or more> Go to Step 24.

<less than 1 kΩ> Go to Step 33.

STEP 24. Connector check: B-03 joint connector (CAN1)


caution The strand end of the twist wire should be within 10 cm from the connector. For details refer to .

When checking the joint connector, ensure that its wiring harness side and its short pins are not damaged.

Q. Is the check result normal?

Go to Step 25.

Repair a defective connector or replace the joint connector.

STEP 25. Resistance measurement at B-03 joint connector (CAN1).
caution A digital multimeter should be used. For details refer to .
caution The test wiring harness should be used. For details refer to .


(1)Disconnect the connector, and measure at the wiring harness side.
(2)
caution When measuring the resistance, disconnect the negative battery terminal. For details refer to .
Ensure that the negative battery terminal is disconnected.

(3)Resistance between B-03 joint connector (CAN1) terminal No.4 and body earth
OK: 1 kΩ or more

(4)Resistance between B-03 joint connector (CAN1) terminal No.5 and body earth
OK: 1 kΩ or more

(5)Resistance between B-03 joint connector (CAN1) terminal No.7 and body earth
OK: 1 kΩ or more

(6)Resistance between B-03 joint connector (CAN1) terminal No.10 and body earth
OK: 1 kΩ or more

Q. Are the check results normal?

YES <all of the measurement results show 1 kΩ or more> : Go to Step 32.

NO <The resistance between terminal No.4 and body earth is less than 1 kΩ> : Go to Step 26.

NO <The resistance between terminal No.5 and body earth is less than 1 kΩ> : Go to Step 27.

NO <The resistance between terminal No.7 and body earth is less than 1 kΩ> : Go to Step 29.

NO <The resistance between terminal No.10 and body earth is less than 1 kΩ> : Go to Step 31.

STEP 26. Resistance measurement at B-03 joint connector (CAN1).
caution A digital multimeter should be used. For details refer to .
caution The test wiring harness should be used. For details refer to .


(1)Disconnect the joint connector (CAN1) and the combination meter connector, and measure at the wiring harness side.
(2)
caution When measuring the resistance, disconnect the negative battery terminal. For details refer to .
Ensure that the negative battery terminal is disconnected.

(3)Resistance between B-03 joint connector (CAN1) terminal No.4 and body earth
OK: 1 kΩ or more
(4)
caution Strictly observe the specified wiring harness repair procedure. For details refer to .

Q. Is the check result normal?

<1 kΩ or more> It is determined that there is an intermittent malfunction such as poor engaged connector(s) or open circuit (Refer to GROUP 00, How to Cope with Intermittent Malfunction ).

<less than 1 kΩ> Repair the wiring harness between joint connector (CAN1) and the combination meter connector.

STEP 27. Connector check: B-233 ETACS-ECU connector


caution The strand end of the twist wire should be within 10 cm from the connector. For details refer to .

Q. Is the check result normal?

Go to Step 28.

Repair the defective connector.

STEP 28. Resistance measurement at B-03 joint connector (CAN1).
caution A digital multimeter should be used. For details refer to .
caution The test wiring harness should be used. For details refer to .




(1)Disconnect the joint connector (CAN1) and the ETACS-ECU connector, and measure at the wiring harness side.
(2)
caution When measuring the resistance, disconnect the negative battery terminal. For details refer to .
Ensure that the negative battery terminal is disconnected.

(3)Resistance between B-03 joint connector (CAN1) terminal No.5 and body earth
OK: 1 kΩ or more
(4)
caution Strictly observe the specified wiring harness repair procedure. For details refer to .

Q. Is the check result normal?

<1 kΩ or more> It is determined that there is an intermittent malfunction such as poor engaged connector(s) or open circuit (Refer to GROUP 00, How to Cope with Intermittent Malfunction ).

<less than 1 kΩ> Repair the wiring harness between the joint connector (CAN1) and the ETACS-ECU connector.

STEP 29. Connector check: B-109 SRS-ECU connector


caution The strand end of the twist wire should be within 10 cm from the connector. For details refer to .

Q. Is the check result normal?

Go to Step 30.

Repair the defective connector.

STEP 30. Resistance measurement at B-03 joint connector (CAN1).
caution A digital multimeter should be used. For details refer to .
caution The test wiring harness should be used. For details refer to .


(1)Disconnect the joint connector (CAN1) and the SRS-ECU connector, and measure at the wiring harness side.
(2)
caution When measuring the resistance, disconnect the negative battery terminal. For details refer to .
Ensure that the negative battery terminal is disconnected.

(3)Resistance between B-03 joint connector (CAN1) terminal No.7 and body earth
OK: 1 kΩ or more
(4)
caution Strictly observe the specified wiring harness repair procedure. For details refer to .

Q. Is the check result normal?

<1 kΩ or more> It is determined that there is an intermittent malfunction such as poor engaged connector(s) or open circuit (Refer to GROUP 00, How to Cope with Intermittent Malfunction ).

<less than 1 kΩ> Repair the wiring harness between the joint connector (CAN1) and the SRS-ECU connector.

STEP 31. Resistance measurement at B-03 joint connector (CAN1).
caution A digital multimeter should be used. For details refer to .
caution The test wiring harness should be used. For details refer to .


(1)Disconnect the connector, and measure at the wiring harness side.
(2)
caution When measuring the resistance, disconnect the negative battery terminal. For details refer to .
Ensure that the negative battery terminal is disconnected.

(3)Resistance between B-03 joint connector (CAN1) terminal No.10 and body earth
OK: 1 kΩ or more
(4)
caution Strictly observe the specified wiring harness repair procedure. For details refer to .

Q. Is the check result normal?

<1 kΩ or more> It is determined that there is an intermittent malfunction such as poor engaged connector(s) or open circuit (Refer to GROUP 00, How to Cope with Intermittent Malfunction ).

<less than 1 kΩ> Repair the wiring harness between the joint connector (CAN1) and the diagnosis connector.

STEP 32. Resistance measurement at B-03 joint connector (CAN1).
caution A digital multimeter should be used. For details refer to .
caution The test wiring harness should be used. For details refer to .


(1)Disconnect the connector, and measure at the wiring harness side.
(2)
caution When measuring the resistance, disconnect the negative battery terminal. For details refer to .
Ensure that the negative battery terminal is disconnected.

(3)Resistance between B-03 joint connector (CAN1) terminal No.11 and body earth
OK: 1 kΩ or more
(4)
caution Strictly observe the specified wiring harness repair procedure. For details refer to .

Q. Is the check result normal?

<1 kΩ or more> It is determined that there is an intermittent malfunction such as poor engaged connector(s) or open circuit (Refer to GROUP 00, How to Cope with Intermittent Malfunction ).

<less than 1 kΩ> Repair the wiring harness between the joint connector (CAN1) and the intermediate connector.

STEP 33. Connector check: B-107 joint connector (CAN2)


caution The strand end of the twist wire should be within 10 cm from the connector. For details refer to .
When checking the joint connector, ensure that its wiring harness side is not damaged.

Q. Is the check result normal?

Go to Step 34.

Repair a defective connector or replace the joint connector (front wiring harness assembly).

STEP 34. Resistance measurement at the B-107 joint connector (CAN2).
caution A digital multimeter should be used. For details refer to .
caution The test wiring harness should be used. For details refer to .


(1)Disconnect the connector, and measure at the wiring harness side.
(2)
caution When measuring the resistance, disconnect the negative battery terminal. For details refer to .
Ensure that the negative battery terminal is disconnected.

(3)Resistance between B-107 joint connector (CAN2) terminal No.7 and body earth
OK: 1 kΩ or more

(4)Resistance between B-107 joint connector (CAN2) terminal No.11 and body earth
OK: 1 kΩ or more

(5)Resistance between B-107 joint connector (CAN2) terminal No.10 and body earth
OK: 1 kΩ or more
(6)Disconnect the negative battery terminal.

Q. Are the check results normal?

YES <all of the measurement results show 1 kΩ or more> : Go to Step 40.

NO <The resistance between terminal No.7 and body earth is less than 1 kΩ> : Go to Step 35.

NO <The resistance between terminal No.11 and body earth is less than 1 kΩ> : Go to Step 36.

NO <The resistance between terminal No.10 and body earth is less than 1 kΩ> : Go to Step 38.

STEP 35. Resistance measurement at the B-107 joint connector (CAN1).
caution A digital multimeter should be used. For details refer to .
caution The test wiring harness should be used. For details refer to .



(1)Disconnect the engine-ECU <M/T> or engine-A-M/T-ECU <Automated manual transmission> connector and the joint connector (CAN2), and measure at the wiring harness side.
(2)
caution When measuring the resistance, disconnect the negative battery terminal. For details refer to .
Ensure that the negative battery terminal is disconnected.

(3)Resistance between B-107 joint connector (CAN1) terminal No.7 and body earth
OK: 1 kΩ or more
(4)
caution Strictly observe the specified wiring harness repair procedure. For details refer to .

Q. Is the check result normal?

<1 kΩ or more> It is determined that there is an intermittent malfunction such as poor engaged connector(s) or open circuit (Refer to GROUP 00, How to Cope with Intermittent Malfunction ).

<less than 1 kΩ> Repair the wiring harness between the intermediate connector and the engine-ECU <M/T> or engine-A-M/T-ECU <Automated manual transmission> connector.

STEP 36. Connector check: A-05 ABS-ECU connector

caution The strand end of the twist wire should be within 10 cm from the connector. For details refer to .

Q. Is the check result normal?

Go to Step 37.

Repair the defective connector.

STEP 37. Resistance measurement at the B-107 joint connector (CAN2).
caution A digital multimeter should be used. For details refer to .
caution The test wiring harness should be used. For details refer to .



(1)Disconnect the joint connector (CAN2) and the ABS-ECU connector, and measure at the wiring harness side.
(2)
caution When measuring the resistance, disconnect the negative battery terminal. For details refer to .
Ensure that the negative battery terminal is disconnected.

(3)Resistance between B-107 joint connector (CAN2) terminal No.11 and body earth
OK: 1 kΩ or more
(4)
caution Strictly observe the specified wiring harness repair procedure. For details refer to .

Q. Is the check result normal?

<1 kΩ or more> It is determined that there is an intermittent malfunction such as poor engaged connector(s) or open circuit (Refer to GROUP 00, How to Cope with Intermittent Malfunction ).

<less than 1 kΩ> Repair the wiring harness between the joint connector (CAN2) and the ABS-ECU connector.

STEP 38. Connector check: B-106 electric power steering-ECU connector


caution The strand end of the twist wire should be within 10 cm from the connector. For details refer to .

Q. Is the check result normal?

Go to Step 39.

Repair the defective connector.

STEP 39. Resistance measurement at the B-107 joint connector (CAN2).
caution A digital multimeter should be used. For details refer to .
caution The test wiring harness should be used. For details refer to .


(1)Disconnect the joint connector (CAN2) and the electric power steering-ECU connector, and measure at the wiring harness side.
(2)
caution When measuring the resistance, disconnect the negative battery terminal. For details refer to .
Ensure that the negative battery terminal is disconnected.

(3)Resistance between B-107 joint connector (CAN2) terminal No.10 and body earth
OK: 1 kΩ or more
(4)
caution Strictly observe the specified wiring harness repair procedure. For details refer to .

Q. Is the check result normal?

<1 kΩ or more> It is determined that there is an intermittent malfunction such as poor engaged connector(s) or open circuit (Refer to GROUP 00, How to Cope with Intermittent Malfunction ).

<less than 1 kΩ> Repair the wiring harness between the joint connector (CAN2) and the electric power steering-ECU connector.

STEP 40. Resistance measurement at the B-107 joint connector (CAN2).
caution A digital multimeter should be used. For details refer to .
caution The test wiring harness should be used. For details refer to .



(1)Disconnect the joint connector (CAN2) and the intermediate connector, and measure at the wiring harness side.
(2)
caution When measuring the resistance, disconnect the negative battery terminal. For details refer to .
Ensure that the negative battery terminal is disconnected.

(3)Resistance between B-107 joint connector (CAN2) terminal No.9 and body earth
OK: 1 kΩ or more
(4)
caution Strictly observe the specified wiring harness repair procedure. For details refer to .

Q. Is the check result normal?

<1 kΩ or more> It is determined that there is an intermittent malfunction such as poor engaged connector(s) or open circuit (Refer to GROUP 00, How to Cope with Intermittent Malfunction ).

<less than 1 kΩ> Repair the wiring harness between the joint connector (CAN2) and the intermediate connector.
