Q.
Is the check result normal?
 Go to Step 2.
 Repair the defective connector.
|
|
(1)Disconnect the connector, and measure at the wiring harness side.
(2)Turn the ignition switch to the "ACC" position, and turn the tail lamp switch to
the "ON" position.
|
|
(3)Measure the voltage between terminal No.1 and body earth.
OK: System voltage
Q.
Is the check result normal?
Go to Step 3.
Go to Step 5.
|
|
- Check the earth wire for open circuit.
Q.
Is the check result normal?
Go to Step 4.
Repair the wiring harness.
|
|
|
Q.
Is the check result normal?
|
|
|
Replace the steering wheel voice control switch.
|
|
|
|
|
Q.
Is the check result normal?
Go to Step 6.
Repair the defective connector.
|
|
|
Check whether the clock spring is in good condition (Refer to GROUP 52B - Driver’s,
front passenger’s Air Bag Module(s) and Clock Spring  ).
|
|
|
Q.
Is the check result normal?
|
|
|
Replace the clock spring.
|
|
|
|
|
- Check the power supply lines open and short circuit.
Q.
Is the check result normal?
Go to Step 8.
Repair the wiring harness.
|
|
|
Q.
Is the check result normal?
|
|
|
Diagnose the headlamp and tail lamp. Refer to GROUP 54B, Troubleshooting <COLT> or <COLT
CZ3/CZT>.
|
|
|
|
|
Q.
Is the check result normal?
Go to Step 10.
Repair the defective connector.
|
|
- Check the power supply lines open and short circuit.
|
|
| note |
Prior to the wiring harness inspection, check joint connector (1) B-23, and repair if
necessary.
|
Q.
Is the check result normal?
Repair the wiring harness.
|
|
|

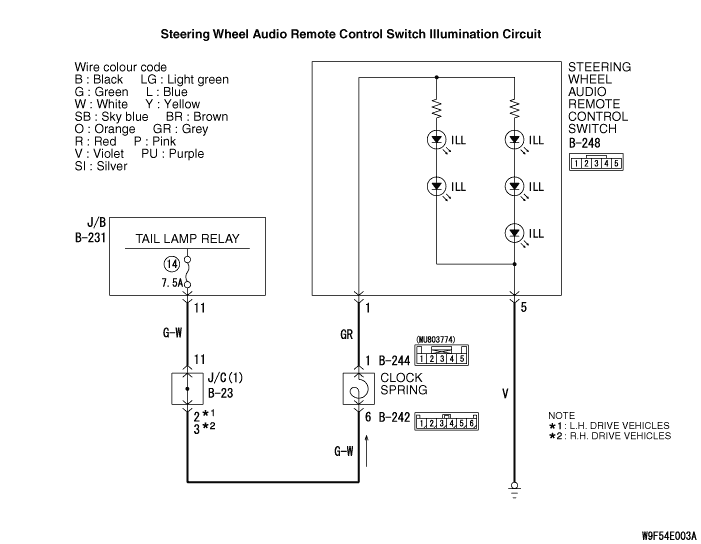

Check whether the illumination of the steering wheel audio remote control switch comes
on normally.
|
|
|
Q.
Is the check result normal?
|
|
|
The trouble can be an intermittent malfunction (Refer to GROUP 00 - How
to use Troubleshooting/inspection Service Points - How to Cope with Intermittent
Malfunction ).
|
|
|
|
|
|
Replace the steering wheel audio remote control switch.
|
|
|
|
)
)
)
)
)
)
)
)
)
)
)
)
)
)
