| Removal step |
|||
<<A>> |
1. |

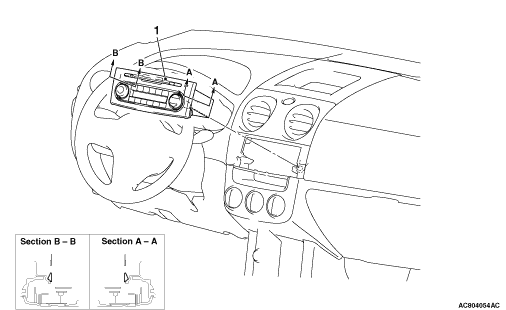

Radio with CD player |
|
|
REMOVAL SERVICE POINT |
<<A>> RADIO WITH CD PLAYER REMOVAL |
) |

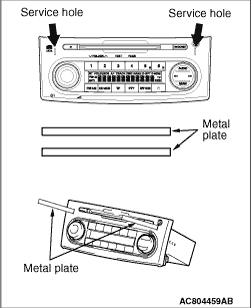

1.Insert the metal plate shown in the figure into the end of the service hole on the radio with CD player. |
) |

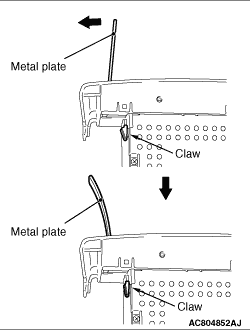

2.While pressing in the claw of the radio with CD player by using the metal plate inserted into the end of the hole, pull out the radio with CD player. |
