(1)Disconnect radio with CD player connector B-13.
|
|
(2)Measure the voltage between terminal number 11 and earth.
OK: System voltage
Q.
Does the measured voltage correspond with this range?
When YES <radio with CD player does not execute memory save then.> : Either repair or replace the radio with CD player. Check that a memory is retained.
 Go to Step 2.
|
|
Q.
Is radio with CD player connector B-13 in good condition?
 Go to Step 3.
Repair or replace the damage component(s). Check that a memory is retained.
|
|

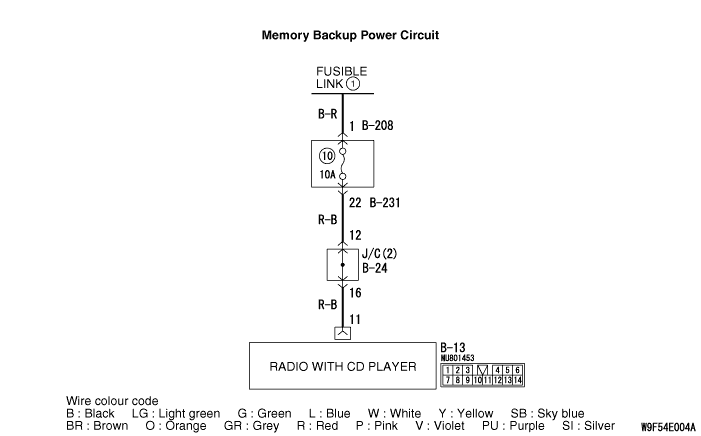

- Check the power supply line (battery power supply) for open circuit and short circuit.
|
|
| note |
Prior to the wiring harness inspection, check junction block connector B-208 and B-231, and joint connector connectors B-24, and repair if necessary.
|
Q.
Are the wiring harness between radio with CD player connector B-13 (terminal 11) and battery in good condition?
Repair or replace the radio with CD player. Check that a memory is retained.
Repair or replace the damage component(s). Check that a memory is retained.
|
)
)
)
)
)
)
)
)
)
)
