Before removal of the air bag module, refer to GROUP 52B, Service Precautions () and Driver’s, Front Passenger’s Air Bag Module(s) and Clock Spring ().

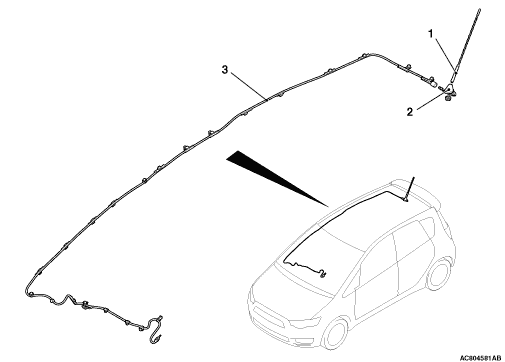

Removal steps
1.
Roof antenna pole
·
Headlining (Refer to GROUP 52A, Headlining )
2.
Roof antenna base
·
Instrument panel assembly (Refer to GROUP 52A, Instrument panel assembly )
·
Curtain air bag module (Refer to GROUP 52B, Side and Curtain air bag module )
) and Driver’s, Front Passenger’s Air Bag Module(s) and Clock Spring ()
