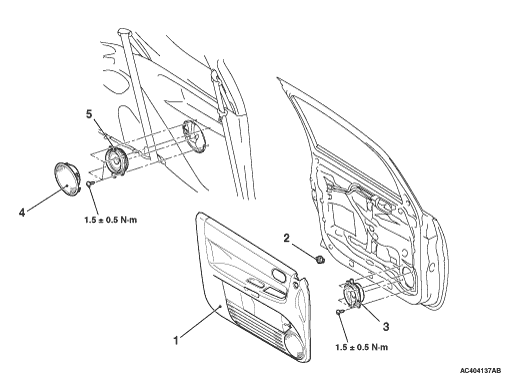

REMOVAL AND INSTALLATION <COLT CZ3>



Removal steps


1.
 Front door trim (Refer to GROUP 52A, Door Trim ).


2.
 Tweeter


3.
 Front speaker


4.
 Rear speaker garnish (Refer to GROUP 52A, Door Trim ).


5.
 Rear speaker
