REMOVAL AND INSTALLATION

Post-installation Operation

If the ETACS-ECU is replaced, then perform the variant coding and write the VIN data (Refer to GROUP 00, Precautions Before Service - How to Perform Variant Coding ).

			Removal Steps
		·	Under cover (driver’s side) <LH drive vehicles> (Refer to GROUP 52A, Instrument panel assembly ).
		·	Glove box assembly <RH drive vehicles> GROUP 52A, Instrument panel assembly ).
		·	Side cover (LH) (Refer to GROUP 52A, Instrument panel assembly ).

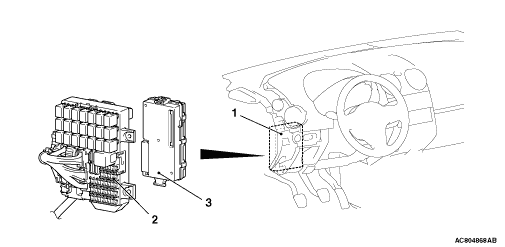

<<A>>		1.	Junction block assembly
		2.	Junction block
		3.	ETACS-ECU

REMOVAL SERVICE POINT

<<A>> JUNCTION BLOCK ASSEMBLY REMOVAL

Remove five tapping screws as shown to remove the junction block assembly.
