| Removal Steps |
|||
| · |
Air intake bezel (RH) or Fog lamp bezel (RH) (Refer to GROUP 51, Front
bumper assembly  <COLT>, <COLT
CZ3>) |
||
| >>A<< |
1. |

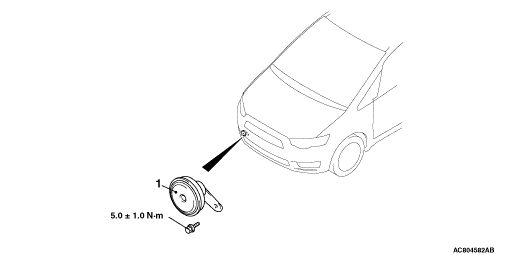

Horn |
|
|
INSTALLATION SERVICE POINT |
>>A<< HORN INSTALLATION |
) |
Use the earth bolts as the mounting bolts for the horn. The earth bolts have "E" mark
on the bolt heads. |
