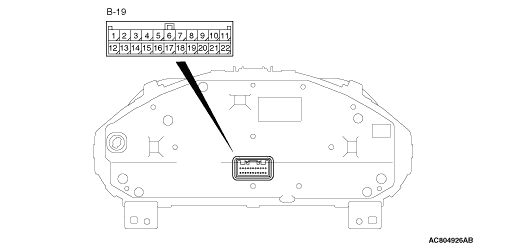

Terminal No.
|
Check item
|
Check condition
|
Normal condition
|
1
|
Battery power supply
|
Always
|
System voltage
|
2 - 5
|
-
|
-
|
-
|
6
|
Passenger’s air bag cut off switch
|
Passenger’s air bag cut off switch: ON
|
System voltage
|
7
|
Input of "MODE/SET" button
|
"MODE/SET" button: ON
|
System voltage
|
8, 9
|
-
|
-
|
-
|
10
|
Illumination (power supply)
|
Illumination switch: ON
|
System voltage
|
11
|
Power supply from ignition switch (IG1)
|
Ignition switch: "ON"
|
System voltage
|
12
|
Earth
|
Always
|
1 V or less
|
13
|
Ambient temperature sensor (GND)
|
Always
|
1 V or less
|
14
|
-
|
-
|
-
|
15
|
CAN L
|
-
|
-
|
16
|
CAN H
|
-
|
-
|
17
|
Input of fuel gauge
|
Fuel: FULL
|
Approximately 1.5 V
|
Fuel: EMPTY
|
Approximately 7 V
|
18
|
Ambient temperature sensor (SENS)
|
Ambient temperature: 0 °C
|
Approximately 3.8 V
|
Ambient temperature: 20 °C
|
Approximately 2.8 V
|
19
|
Seat belt switch (passenger’s side)
|
Seat belt reminder sensor: ON and seat belt switch (passenger’s side): OFF
|
System voltage
|
20
|
Seat belt warning lamp (driver’s side)
|
Seat belt switch (driver’s side): OFF
|
System voltage
|
21
|
Speed pulse output
|
Vehicle speed: Approximately 40 km/h
|
Approximately 28Hz
|
22
|
-
|
-
|
-
|
)
