REMOVAL AND INSTALLATION


warning
  • Before removal of the air bag module, refer to GROUP 52B, Service Precautions () and Driver’s, Front Passenger’s Air Bag Module(s) and Clock Spring ().
  • When removing and installing the steering wheel, do not let it bump against the air bag module.

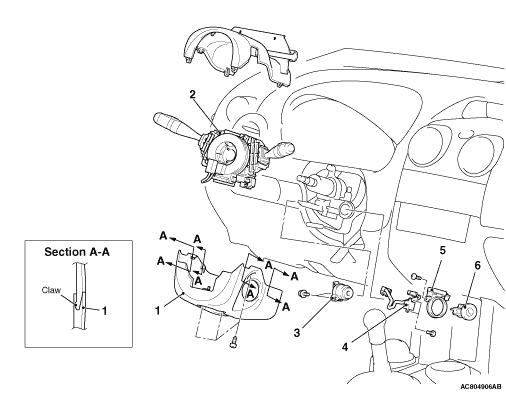

Removal steps


·
 Steering wheel (Refer to GROUP 37, Steering wheel )


1.
 Steering column lower cover


2.
 Column switch assembly


3.
 Ignition switch


4.
 Key reminder switch <R.H. drive vehicles>


5.
 Key ring
<<A>>
6.
 Steering lock cylinder

REMOVAL SERVICE POINT

<<A>> STEERING LOCK CYLINDER REMOVAL
1.Insert the key in the steering lock cylinder and turn it to the "ACC" position.

2.Using a small Phillips head screwdriver, pull the steering lock cylinder toward you.
