SPECIAL TOOLS


Tool
 Number
 Name
 Use


MB990784
 Ornament remover
 Steering column cover removal

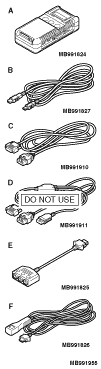

MB991955

    A: MB991824
    B: MB991827
    C: MB991910
    D: MB991911
    E: MB991825
    F: MB991826
 M.U.T.-III sub-assembly

    A: Vehicle communication interface (V.C.I.)
    B: M.U.T.-III USB cable
    C: M.U.T.-III main harness A (Vehicles with CAN communication system)
    D: M.U.T.-III main harness B (Vehicles without CAN communication system)
    E: M.U.T.-III measurement adapter
    F: M.U.T.-III trigger harness
caution For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly.
Key registration



    MB991223
    A: MB991219
    B: MB991220
    C: MB991221
    D: MB991222
    Harness set
    A: Test harness
    B: LED harness
    C: LED harness adapter
    D: Probe

 Making voltage and resistance measurements during troubleshooting

    A: Connect pin contact pressure inspection
    B: Power circuit inspection
    C: Power circuit inspection
    D: Commercial tester connection


MB992006
 Extra fine probe
 Continuity check and voltage measurement at harness wire or connector
