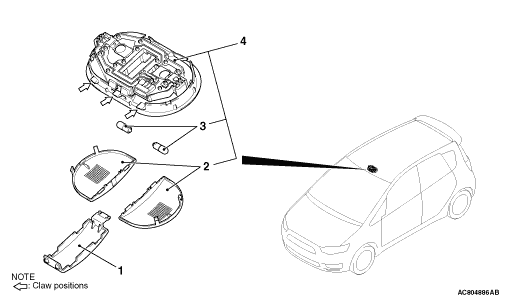

| Removal Steps |
|||
<<A>> |
1. |
Room lamp cover |
|
| <<B>> |
2. |
Room lamp lens |
|
| 3. |
Bulb |
||
| 4. |
Room lamp assembly |
|
|
REMOVAL SERVICE POINTS |

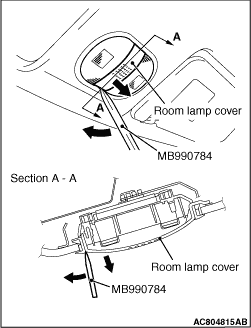

<<A>> ROOM LAMP COVER REMOVAL |
) |
Use special tool MB990784 to remove the room lamp cover. |
<<B>> ROOM LAMP LENS REMOVAL |
) |
Use special tool MB990784 to remove the room lamp lens. |
