Switch position
|
Tester connection
|
Specified condition
|
OFF
|
-
|
Open circuit
|
Windshield intermittent wiper interval adjusting knob
|
6 - 3
|
Operating the adjusting knob changes the resistance.
|
Windshield washer switch
|
6 - 7
|
Continuity exists (2 Ω or less)
|
Windshield wiper switch
|
Hi
|
6 - 8
|
Lo
|
6 - 9
|
Int
|
6 - 10
|
Mist
|
6 - 11
|
Rear wiper switch
|
6 - 4
|
Rear washer switch
|
6 - 5
|
|
|
|
|

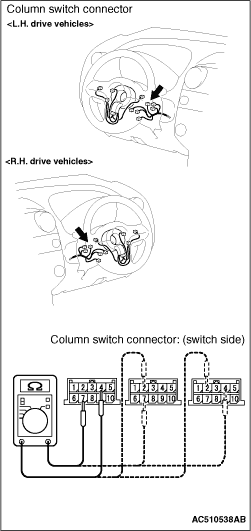

- Remove the lighting switch, wiper and washer switch.

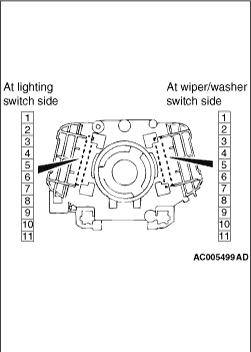

- Check that there is continuity of each same terminal number (from Nos. 2 to 11) between each connectors of column switch body left in the steering column.
|
|
|
|
Column switch body
|
Tester connection
|
Specified condition
|
- Lighting switch side connector
- Wiper and washer switch side connector
|
2 - 2
3 - 3
4 - 4
5 - 5
6 - 6
7 - 7
8 - 8
9 - 9
10 - 10
11 - 11
|
Continuity exists (2 Ω or less)
|
|
|
|
|
|
Tester condition
|
Switch position
|
Specified condition
|
4 - 7
|
0
|
1, 235 Ω
|
1
|
1, 114 Ω
|
2
|
977 Ω
|
3
|
862 Ω
|
4
|
747 Ω
|
2 - 7
|
0
|
548 Ω
|
1
|
669 Ω
|
2
|
806 Ω
|
3
|
921 Ω
|
4
|
1, 036 Ω
|
2 - 4
|
0, 1, 2, 3, 4
|
1, 393 Ω
|
|
|
)
)
)
