Switch
|
Switch position
|
Tester connection
|
Specified condition
|
Front fog lamp switch
|
Pressed
|
5 - 6
|
Continuity exists (2 Ω or less)
|
Released
|
5 - 6
|
No continuity
|
Rear fog lamp switch
|
Pressed
|
1 - 2
|
Continuity exists (2 Ω or less)
|
Released
|
1 - 2
|
No continuity
|
|
|
|
|
|

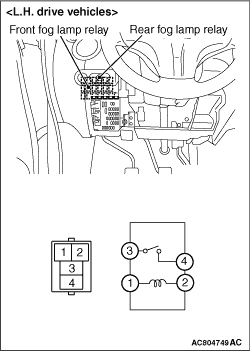

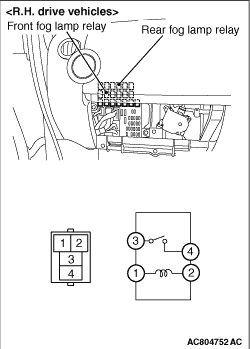

Battery voltage
|
Tester connection
|
Specified condition
|
Not supplied
|
3 - 4
|
No continuity
|
- Connect terminal 1 to the positive battery terminal
- Connect terminal 2 to the negative battery terminal
|
3 - 4
|
Continuity exists (2 Ω or less)
|
|
|
)
)
)
