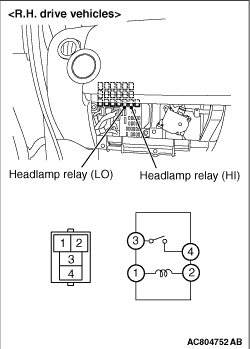

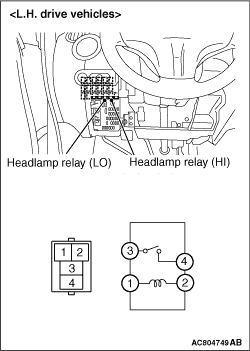

HEADLAMP RELAY (LO) (HI) CHECK

Battery voltage Tester connection Specified condition Not supplied 3 - 4 No continuity Connect terminal 1 to the positive battery terminal Connect terminal 2 to the negative battery terminal 3 - 4 Continuity exists (2 Ω or less)
