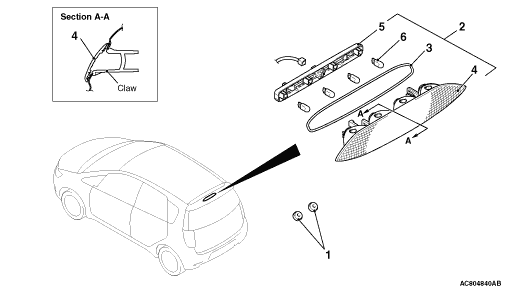

| Removal steps |
|||
| 1. |
Grommet |
||
| · |
High-mounted stop lamp connector connection |
||
<<A>> |
2. |
High-mounted stop lamp assembly |
|
| 3. |
Sealing gasket |
||
| 4. |
High-mounted stop lamp |
||
| 5. |
Bulb holder |
||
| 6. |
Bulb |
|
|
REMOVAL SERVICE POINT |
<<A>> HIGH-MOUNTED STOP LAMP REMOVAL |
) ) |
Use the following steps to easily route high-mounted stop light harness in the event of installation: Insert a flat-tipped screwdriver through the service hole as shown to disengage the claw to remove the high-mounted stop lamp. |
