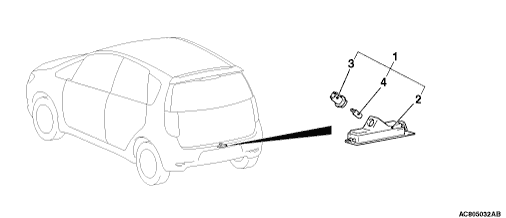

| Removal steps |
|||
<<A>> |
1. |
Licence plate lamp assembly |
|
| 2. |
Licence plate lamp body |
||
| 3. |
Socket |
||
| 4. |
Bulb |
|
|
REMOVAL SERVICE POINT |
<<A>> LICENCE PLATE LAMP ASSEMBLY REMOVAL |
) |
Push the licence plate lamp assembly to the right side, bend the hook, disengage the claw of the rear bumper, and then remove the licence plate lamp assembly. |
