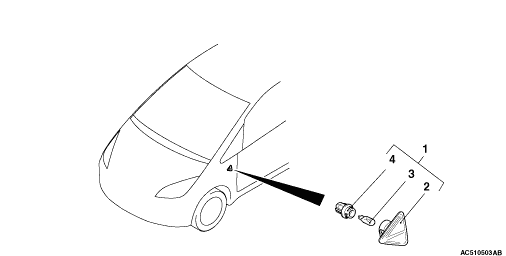

| Removal steps |
|||
<<A>> |
1. |
Side turn-signal lamp assembly |
|
| 2. |
Side turn-signal lamp |
||
| 3. |
Bulb |
||
| 4. |
Socket |
|
|
REMOVAL SERVICE POINT |

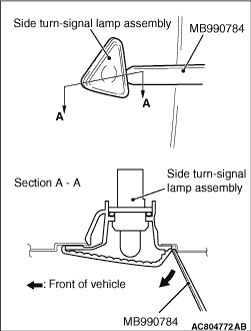

<<A>> SIDE TURN SIGNAL LAMP REMOVAL |
) |
Use an appropriate tool such as special tool MB990784 to pry out the tab from the fender, and remove the side turn-signal lamp assembly. |
