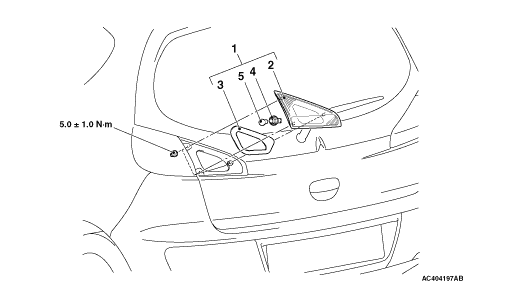

REMOVAL AND INSTALLATION



Removal steps
<<A>>
·
 Tailgate trim


·
 Back-up lamp connector (Passenger’s side tail lamp assembly) or rear fog lamp connector (Driver’s side tail lamp assembly)
<<B>>
1.
 Tail lamp assembly


2.
 Tail lamp unit


3.
 Gasket


4.
 Socket


5.
 Bulb

REMOVAL SERVICE POINTS

<<A>> TAILGATE TRIM REMOVAL

Remove the cover of the tailgate trim shown in the illustration.

<<B>> TAIL LAMP ASSEMBLY REMOVAL


Remove the tail lamp assembly mounting nut indicated by the arrow, and remove the tail lamp assembly.
