SIDE AND CURTAIN
AIR BAGS
SIDE AND CURTAIN AIR BAGS

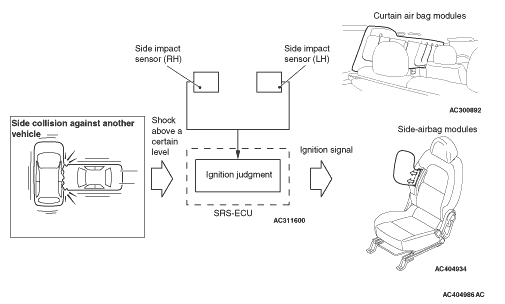

In case of a side collision, if an impact that based on criteria is simultaneously detected
by the side impact sensors installed in a centre pillar and respectively and by the side-airbag
safing G-sensor (the sensors turn ON), the SRS-ECU sends an ignition signal to the side-airbag
module and curtain air bag module on the relevant side to inflate them.
)
