GENERAL INFORMATION

The driver’s and passenger’s (front) air bag and seat belt with pre-tensioner have been standard equipped on all vehicles.
To improve safety against side collisions, the side-airbags or side-airbags and curtain air bags have been adopted as standard or option.
For the inflator, the gas which is harmless to the human body has been adopted.
The passenger’s air bag cut off switch which can enable and disable the passenger air bag has been equipped in the glove box.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

The SRS is designed to supplement the front seat belts. It eliminates or reduces injury to the front passenger(s) by deploying air bag(s) in case of a frontal collision.

SRS SIDE-AIRBAG

Side-airbag systems in the front seats are activated when sideward impacts applied to the vehicle exceed criteria to protect the occupants’ upper bodies.

SRS CURTAIN AIR BAG

The curtain air bag systems are activated when sideward impacts applied to the vehicle exceed criteria, to protect the heads of the occupants in the front and rear seats.

SEAT BELT WITH PRE-TENSIONER

The seat belts with pre-tensioner work simultaneously with the SRS. The pre-tensioner takes up seat belt slack immediately when a collision takes place, restraining the front passengers sooner than the SRS. This prevents the passengers from moving forward.

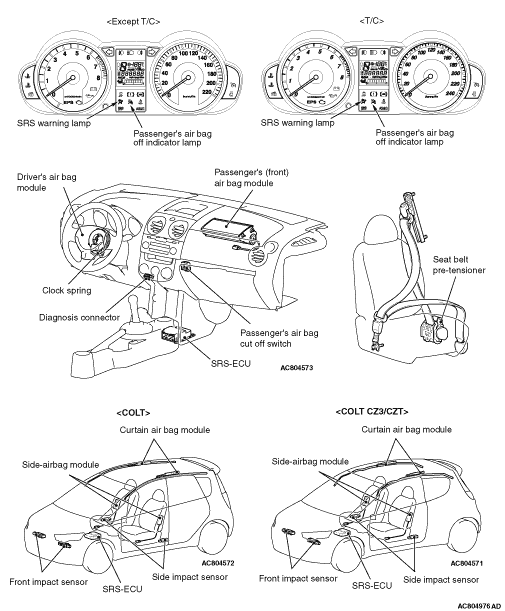

CONSTRUCTION DIAGRAM

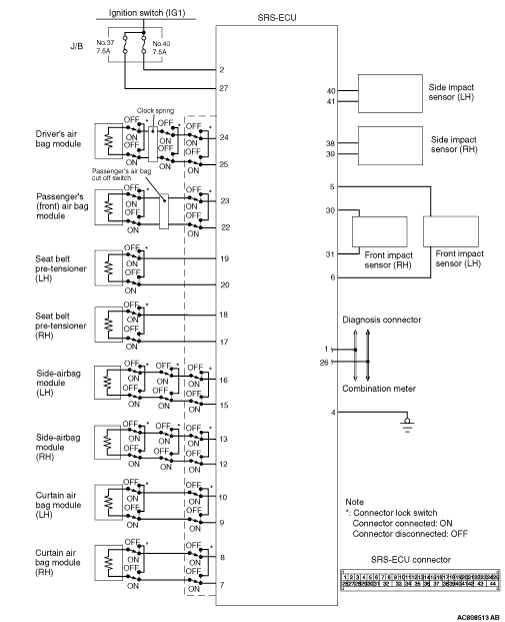

SRS SYSTEM CIRCUIT DIAGRAM

CAUTION LABELS

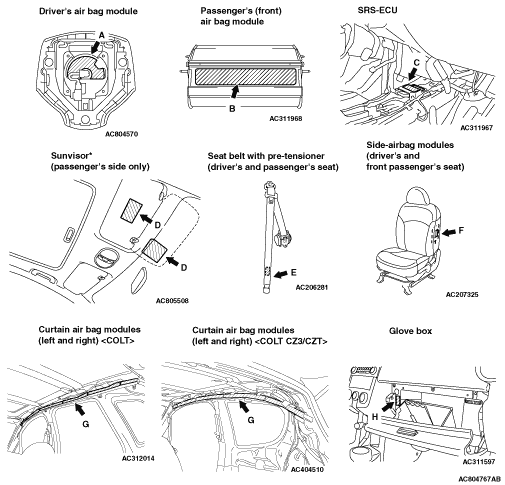

Labels to indicate cautions regarding the handling and the services of SRS air bag are attached on the position shown in the following illustration.

note

*: Indicates LHD vehicles. For RHD vehicles, the specified application position of label is reversed right to left.

Label contents
A	DANGER FLAMMABLE EXPLOSIVE DO NOT: DISASSEMBLE; HEAT; INCINERATE; APPLY ELECTRICITY; OR STORE AT HIGH TEMPERATURE (93°C or HIGHER). REFER TO WORKSHOP MANUAL FOR DETAILS.
B	WARNING DEATH OR SERIOUS INJURY can occur ALWAYS use SEAT BELT and CHILD SEAT. DO NOT place rear-facing child seat on the front passenger seat with air bag. CHILDREN are SAFER in THE REAR SEAT. DO NOT sit or lean unnecessarily close to the air bag. DO NOT place or install any objects over the air bag or between the air bag and yourself. SEE the owner’s manual for further information and explanations.
C	CAUTION: DO NOT DISASSEMBLE OR DROP. IF DEFECT REFER TO SERVICE MANUAL.
D	WARNING DEATH OR SERIOUS INJURY can occur DO NOT place rear-facing child seat on this seat with airbag.
E	DANGER: SEAT BELT PRETENSIONER DO NOT DISASSEMBLE OR IMPACT REFER TO SERVICE MANUAL FOR INSTRUCTIONS, HANDLING, STORAGE AND DISPOSAL PROCEDURES.
F	DANGER contains HIGH PRESSURE GAS and FLAMMABLE MATERIAL TO PREVENT PERSONAL INJURY: DO NOT REPAIR, DISMANTLE, INCINERATE OR BRING INTO CONTACT WITH ELECTRICITY (SUCH AS VOLTMETER) DO NOT STORE IN A PLACE WHERE TEMPERATURE REACHES 93°C (200°F) OR MORE. DO NOT INSTALL INTO ANOTHER VEHICLE. DO NOT INSTALL ANY FOREIGN OBJECTS BETWEEN AIR BAG AND ITS COVER, OR WITHIN MODULE. FOLLOW THE INSTALLATION PROCEDURE IN THE REPAIR MANUAL WHEN INSTALLING A SEAT COVER. SERVICE OR DISPOSE OF AIR BAG MODULE AS DIRECTED IN THE REPAIR MANUAL.
G	WARNING SRS AIRBAG THIS AIRBAG MODULE CANNOT BE REPAIRED. (SEE SERVICE MANUAL FOR INSTRUCTIONS ON DIAGNOSIS AND REPLACEMENT) DO NOT DIAGNOSE USING ELECTRICALLY POWERED TEST EQUIPMENT OR PROBING DEVICES. TAMPERING OR MISHANDLING CAN RESULT IN PERSONAL INJURY. STORE THE REMOVED AIRBAG WITH THE PAD OR COVER SURFACE UP. (REFER TO SERVICE MANUAL FOR SPECIAL HANDLING OR STORAGE) DO NOT STORE ABOVE 93°C (200°F)
