| Switch position |
Tester connection |
Specified condition |

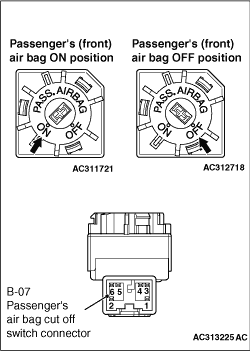

| Passenger’s (front) air bag ON position |
1 - 4 2 - 5 |
Less than 0.1 Ω |
| 3 - 6 |
Open |
|
| Passenger’s (front) air bag OFF position |
4 - 5 |
2 ± 0.3 Ω |
| 3 - 6 |
Less than 2 Ω |
|
| 1 - 2 |
Open |
PASSENGER’S AIR BAG CUT OFF SWITCH CONTINUITY CHECK |
|
|
