REMOVAL AND INSTALLATION

warning

Never attempt to disassemble or repair the passenger’s air bag cut off switch. If faulty, replace it.

Do not drop or subject the passenger’s air bag cut off switch to impact or vibration. Replace the passenger’s air bag cut off switch, if dents, cracking, deformation, or rust are present.

Pre-removal Operation

Turn the ignition key to the "LOCK" (OFF) position.
Disconnect the Negative Battery Terminal.

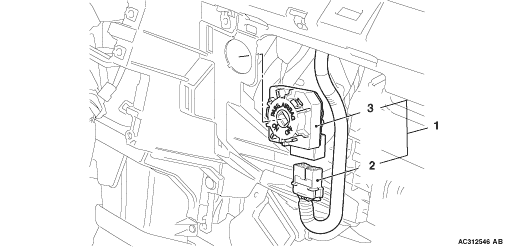

			Removal steps
		·	Glove box assembly (Refer to GROUP 52A, Instrument panel assembly ).
		·	Instrument panel wire connector (passenger’s (front) air bag module) (Refer to ).
		1.	Passenger’s air bag cut off switch and connector
<<A>>		2.	Connector
		3.	Passenger’s air bag cut off switch
			Installation steps
	>>A<<	·	Pre-installation inspection
		3.	Passenger’s air bag cut off switch
		2.	Connector
	>>B<<	1.	Passenger’s air bag cut off switch and connector
		·	Instrument panel wire (passenger’s (front) air bag module) (Refer to ).
		·	Glove box assembly (Refer to GROUP 52A, Instrument panel assembly ).
	>>C<<	·	Post-installation inspection

REMOVAL SERVICE POINT

<<A>> CONNECTOR DISCONNECTION

Disconnect the wiring harness side connector by pulling it to the direction shown while compressing parts "A" and "B".

INSTALLATION SERVICE POINTS

>>A<< PRE-INSTALLATION INSPECTION

Check the passenger’s air bag cut off switch for dents, breakage and bending and measure the resistance between the terminals, even when installing a new passenger’s air bag cut off switch.

>>B<< PASSENGER’S AIR BAG CUT OFF SWITCH AND INSTALLATION

warning

If the passenger’s air bag cut off switch is not installed securely and correctly, the passenger’s (front) air bag may not operate normally.

Securely connect the connector.

>>C<< POST-INSTALLATION INSPECTION

Reconnect the negative battery cable.
Turn the ignition switch to the "ON" position.
Does the SRS warning lamp illuminate for about 7 seconds, and go out?
If yes, the SRS system is functioning properly. If not, refer to .
When the ignition key is inserted in the passenger’s air bag cut off switch cylinder and turned to the "OFF" position, check that the passenger’s air bag cut off indicator lamp illuminates.
