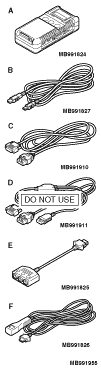

- A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991825
F: MB991826
- A: Vehicle communication interface (V. C. I.)
B: M.U.T.-III USB cable
C: M.U.T.-III main harness A (applicable to vehicles with CAN communication)
D: M.U.T.-III main harness B (applicable to vehicles without CAN communication)
E: M.U.T.-III Measure adapter
F: M.U.T.-III Trigger harness
| caution | For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly. |
)
)
)
)
- Deployment of front passenger’s (front) air bag module, side-airbag module inside the vehicle
- Deployment of front passenger’s (front) air bag module outside the vehicle
)
- Deployment of seat belt pre-tensioner and curtain air bag inside the vehicle
- Deployment of side-airbag module, seat belt pre-tensioner and curtain air bag outside the vehicle
)
- A: MB991219
B: MB991220
C: MB991221
D: MB991222
- A: Check harness
B: LED harness
C: LED harness adapter
D: Probe
- A: For checking connector pin contact pressure
B: For checking power supply circuit
C: For checking power supply circuit
D: For connecting a locally sourced tester
)
